6-Way Dozer Blades DZ30 Series
Models

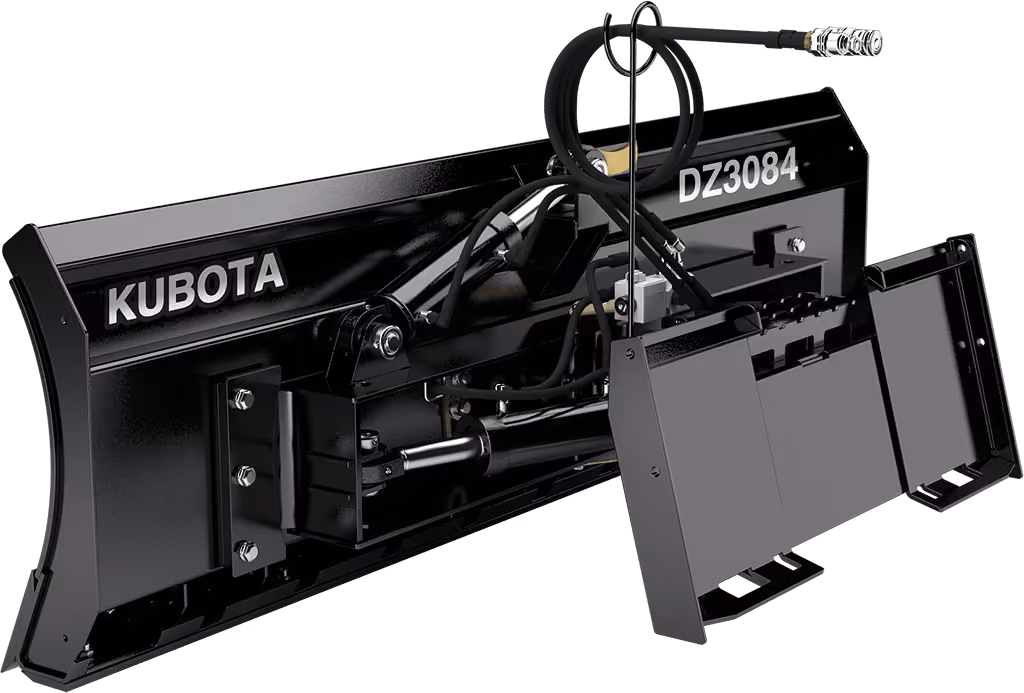

DZ3084
The DZ3084 heavy-duty Dozer Blades are well-suited for contractors or landowners who are preparing rough grade, moving material around the job site, pushing silage or manure or cutting or clearing ditches.
Related Categories
No items found.
Features
Cutting Edge
3-Piece reversible cutting edge allows for replacement of the entire cutting edge or just the high-wear corner sections.
Hydraulic Adjustment
Hydraulic adjustment provides for quick and easy blade positioning and adjusts 6-ways to meet operator needs.
Bubble Gauge
The bubble gauge helps the operator level the blade to ensure a level cut.
Key Specifications
{"version":1,"models":[{"code":"DZ3084"}],"sections":[{"name":"Dimensions","rows":[{"label":"Weight","values":["610 kg"]},{"label":"Mouldboard Thickness","values":["10 mm"]},{"label":"Mouldboard Height","values":["67.3 cm"]},{"label":"End Cutting Edge Width","values":["203 mm"]},{"label":"End Cutting Edge Thickness","values":["19 mm"]},{"label":"Center Cutting Edge Width","values":["203 mm"]},{"label":"Center Cutting Edge Thickness","values":["19 mm"]},{"label":"Wear Edge Width","values":["102 mm"]},{"label":"Wear Edge Thickness","values":["13 mm"]}]},{"name":"Specifications","rows":[{"label":"Cylinder Bore","values":["89 mm"]},{"label":"Pivot Bushings","values":["Replaceable"]},{"label":"Pivot Pin Size - Angle Pin","values":["3\" (76mm)"]},{"label":"Pivot Pin Size - Pivot Pin","values":["3\" (76mm)"]},{"label":"Max. Hydraulic Pressure","values":["3500 psi"]}]},{"name":"Blade","rows":[{"label":"Max. Blade Angle","values":["30 deg"]},{"label":"Max. Blade Tilt","values":["10 deg"]},{"label":"Working Width – Straight","values":["2.13 m"]},{"label":"Working Width – 30° Angle","values":["1.85 m"]}]}]}
