Aerator TDA1200/TDA1600
Models
TDA1600, TDA1200

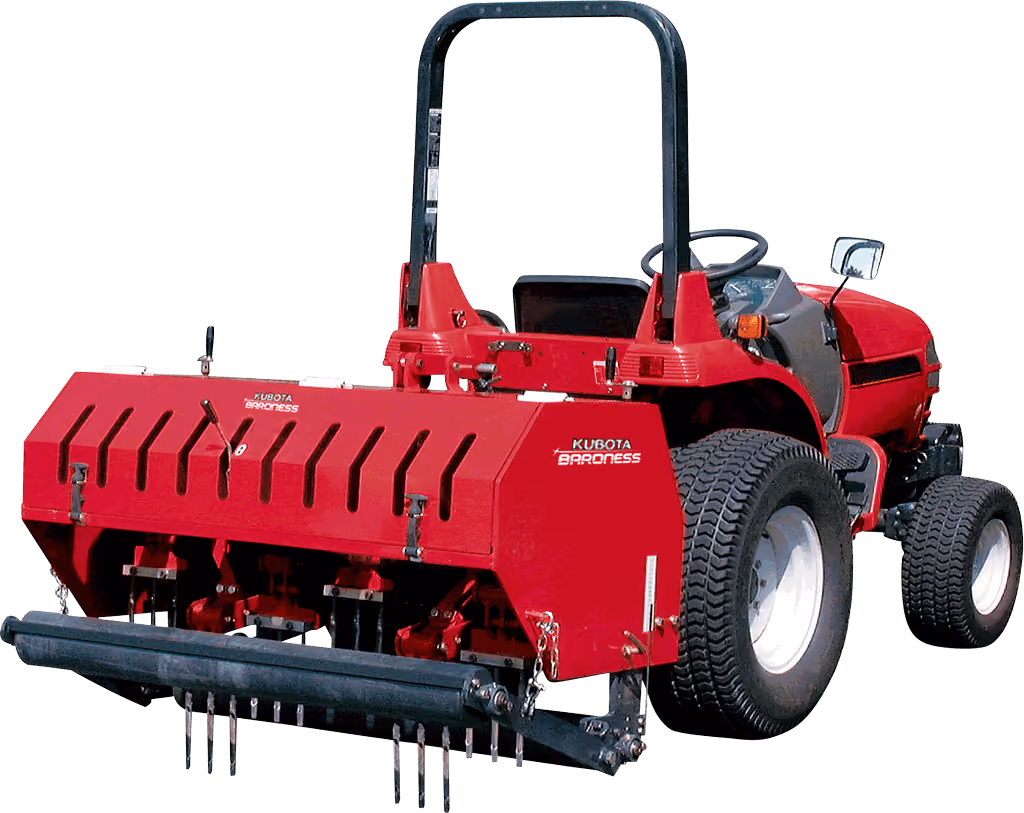

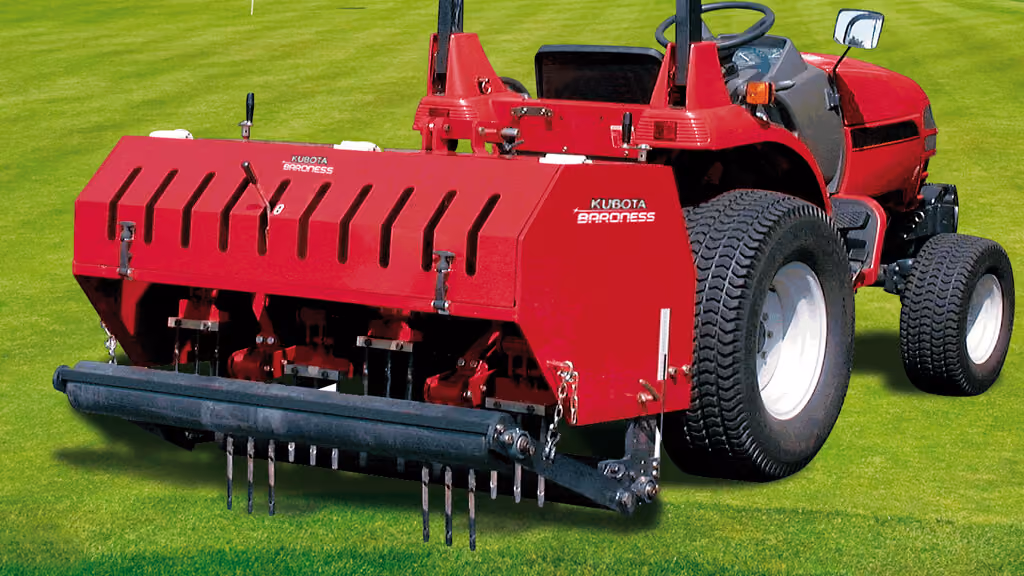

The Baroness TDA1200/1600 tractor mounted Aerator is another quality machine from Kyoeisha Co. Ltd. of Japan which combines sturdiness, efficiency and simplicity to give you absolutely the best possible finish on golf greens, sports pitches and playing fields.
Related Categories
No items found.
Features
Designed To Deliver
- 2-speed gearbox achieves a hole pattern to suit all tine configurations
- Rear roller can be elevated for hollow tine operations, ensuring cores aren’t compacted and difficult to harvest
- Rear roller can be lowered onto the playing surface during solid tine operations to provide a level finish
Rear Roller
Designed to work down to a depth of 180mm(1600) or 250mm(1200), the TOA operates at up to 2.05 km/h(1600) or 2.0km/h(1200) and has two crankshaft operating speeds and a wide variety of tine options.
Key Specifications
{"version":1,"models":[{"code":"TDA1600"},{"code":"TDA1200"}],"sections":[{"name":"Specifications","rows":[{"label":"Length","values":["970 mm","970 mm"]},{"label":"Width","values":["1790 mm","1420 mm"]},{"label":"Height","values":["850 mm","850 mm"]},{"label":"Weight","values":["580 kg","495 kg"]},{"label":"Working Width","values":["1560 mm","1170 mm"]},{"label":"Depth","values":["180 mm","250 mm"]},{"label":"Spacing","values":["65 – 100 mm","62 – 100 mm"]},{"label":"PTO Speed","values":["540 / 1000","540 / 1000 rpm"]},{"label":"Work Rate","values":["3120 m2/h","2600 m2/h"]}]},{"name":"Drive Train","rows":[{"label":"Transmission","values":["2-speed Gearbox","2-speed Gearbox"]},{"label":"Tractor Power Min.","values":["17.6 kW","13.2 kW"]}]}]}
