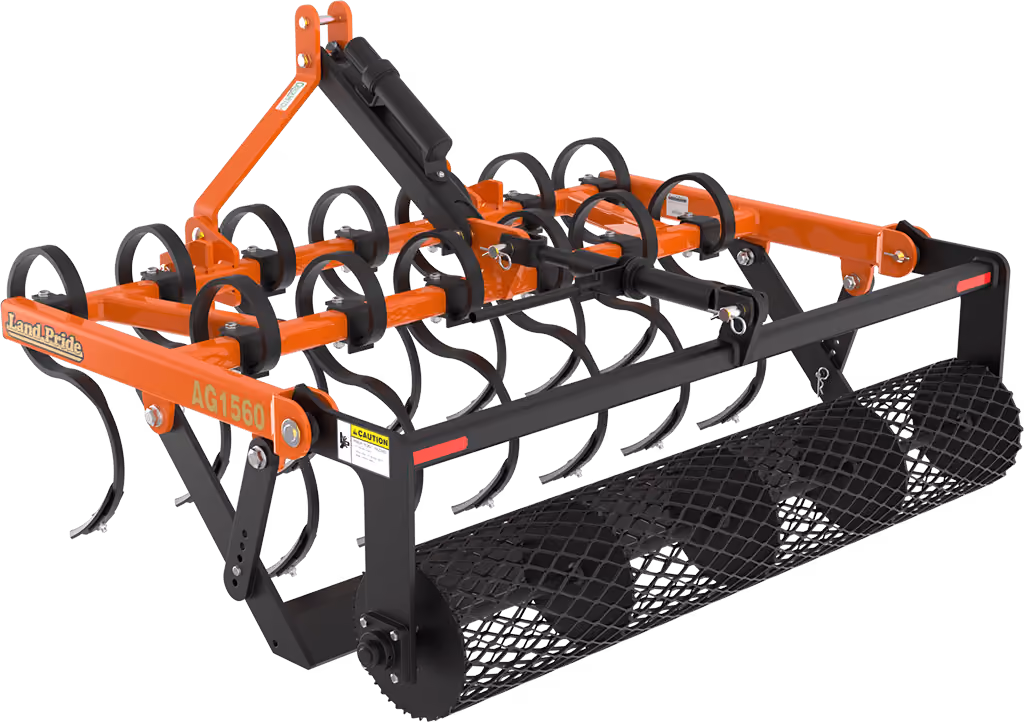

Arena Graders AG15 Series

Models

AG1560, AG1572, AG1584

Land Pride’s AG15 Series Arena Grader is an entry level arena grader for hobbyists and enthusiasts. The Cat 1 hitch is quick hitch compatible and ties into a 2" x 2" square tube frame. The end tubes are 2" x 3". The S-tines feature replaceable tips. Behind the two rows of S-tines is a five-position leveling bar to smooth the soil. The job is finished with either a pipe or mesh roller to break clods and fluff the soil. The working depth is 4" and is set by a simple ratchet handle, a Land Pride exclusive feature.

Related Categories

Documents

Download Brochure Feature & Benefits

No items found.

Features

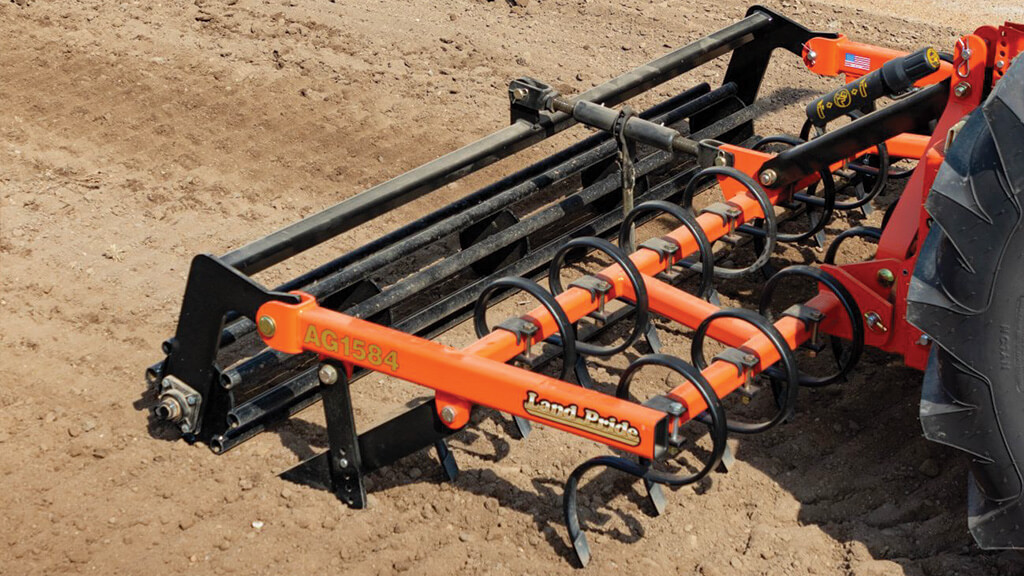

Roller options

Finish your job with either a pipe roller which will provide a rippled and more aerated finish. The mesh roller provides uniformity as well as a smoother more consolidated finish.

Adjustable leveler

The integrated adjustable leveling board plays a key role in achieving an even, uniform finish. Adjustment is possible in a range of 125mm without the need for tools.

Quick Hitch Compatible

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

Key Specifications

{"version":1,"models":[{"code":"AG1560"},{"code":"AG1572"},{"code":"AG1584"}],"sections":[{"name":"Specifications","rows":[{"label":"Max. Horsepower","values":["45 hp","55 hp","65 hp"]},{"label":"Depth Control","values":["Ratchet Jack","Ratchet Jack","Ratchet Jack"]},{"label":"Frame","values":["2x2 Square Tubing Frame","2x2 Square Tubing Frame","2x2 Square Tubing Frame"]},{"label":"S-Tines","values":["Replaceable Tips","Replaceable Tips","Replaceable Tips"]},{"label":"Rolling Basket","values":["Adjustable, Mesh or Pipe","Adjustable, Mesh or Pipe","Adjustable, Mesh or Pipe"]},{"label":"Leveling Bar","values":["Adjustable","Adjustable","Adjustable"]},{"label":"Colour","values":["Yellow and Orange","Yellow and Orange","Yellow and Orange"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["152.4 cm","182.88 cm","213.36 cm"]},{"label":"Working Depth","values":["10.16 cm","10.16 cm","10.16 cm"]}]},{"name":"Hitch","rows":[{"label":"Hitch","values":["Cat. I","Cat. I","Cat. I"]},{"label":"Quick Hitch Compatible","values":["Yes","Yes","Yes"]}]}]}
