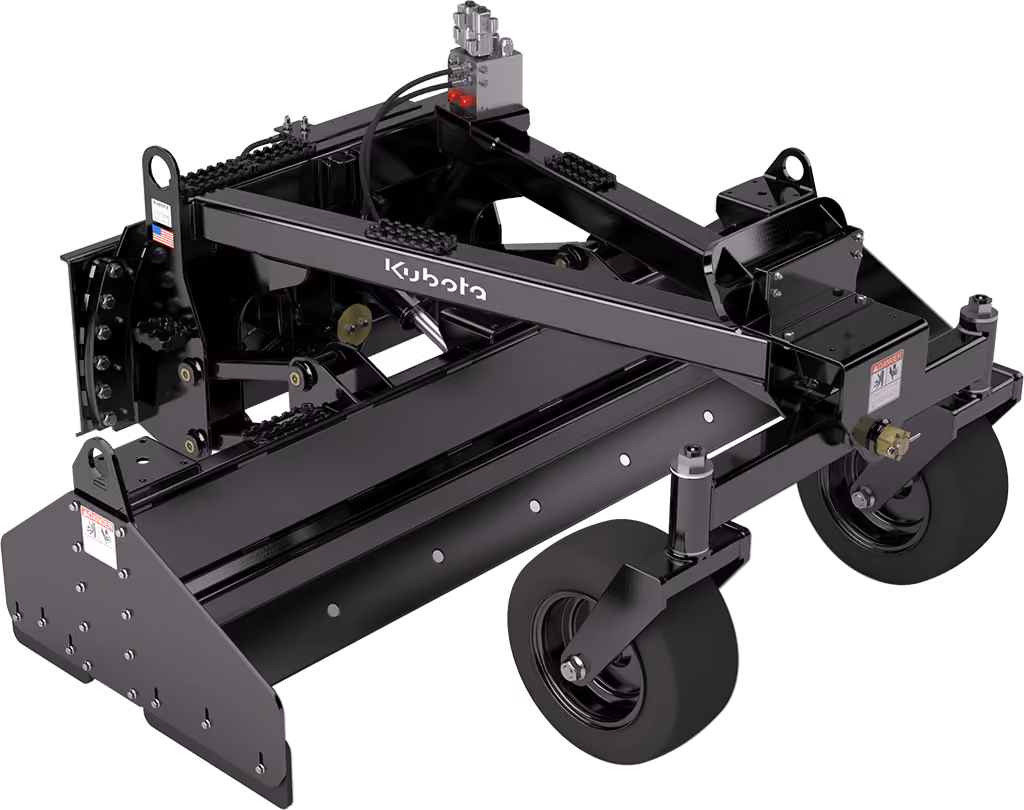

Box Blades BB30 Series

Models

BB3084, BB3096

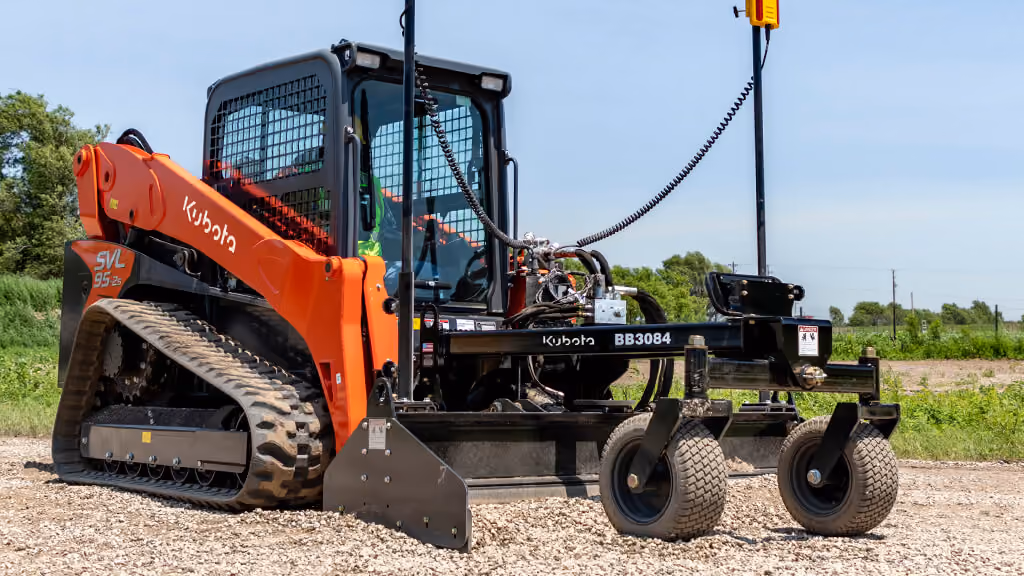

The BB30 Box Blade allows users the option of rough or precision grading finishes. Basic grading work can be done in applications requiring a rough grade such as landscaping and initial surface prep. Precision grading can be accomplished with the addition of a laser system to accurately control site preparation and flat-work operations. This dual-plane grader will automatically lift and tilt as it moves over the ground for precision grading and is designed specifically for use with Kubota power units.

Related Categories

Construction

Attachments

Documents

Download Brochure

No items found.

Features

Side Cutters

Reversible side cutters are manufactured from wear-resistant AR400 steel and are reversible and replaceable.

Precision & Accuracy

With the addition of third party 2-D technology, operators can control grading operations from the cab with precision and accuracy. (See literature tab for flyer.)

Optional Mast Assembly

Optional 82" mast assembly for 3rd party laser technology to control tilt and height of the grading blade.

Key Specifications

{"version":1,"models":[{"code":"BB3084"},{"code":"BB3096"}],"sections":[{"name":"Specifications","rows":[{"label":"Working Width","values":["213 cm","244 cm"]},{"label":"Base Weight","values":["833 kg","870 kg"]},{"label":"Foam Fitted Tyres","values":["Yes","Yes"]},{"label":"Parabolic Mirror","values":["Yes","Yes"]}]},{"name":"Hydraulics","rows":[{"label":"Max. Flow","values":["95 L/min","95 L/min"]},{"label":"Max. Pressure","values":["3500 psi","3500 psi"]},{"label":"Pilot Cylinder Control Valve","values":["Yes","Yes"]},{"label":"Welded Lift Cylinder Bore","values":["76 mm","76 mm"]},{"label":"Welded Tilt Cylinder Bore","values":["63.5 mm","63.5 mm"]}]},{"name":"Blade","rows":[{"label":"Blade Lift Pins","values":["2.5 cm","2.5 cm"]},{"label":"Tilt Pin","values":["7.6 cm","7.6 cm"]},{"label":"Grader Blade Thickness","values":["13 mm","13 mm"]},{"label":"Grader Blade Width","values":["152 mm","152 mm"]},{"label":"Reversible Side Cutters Thickness (AR400 Steel)","values":["12.7 mm","12.7 mm"]},{"label":"Reversible Side Cutters Width (AR400 Steel)","values":["152 mm","152 mm"]},{"label":"End Panels - Replaceable - Grade 50","values":["9.5 mm","9.5 mm"]},{"label":"Floating Blades Front and Rear","values":["Yes","Yes"]}]}]}
