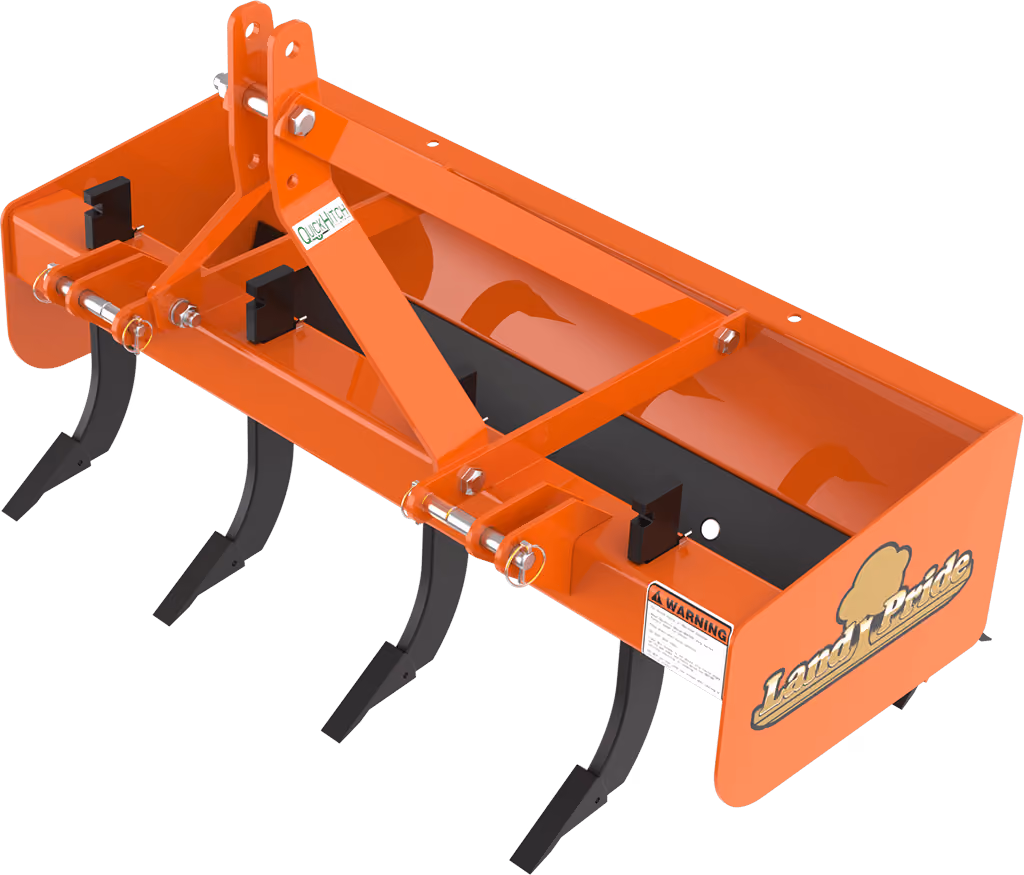

Box Scraper BB05 Series

Models

BB0548, BB0554

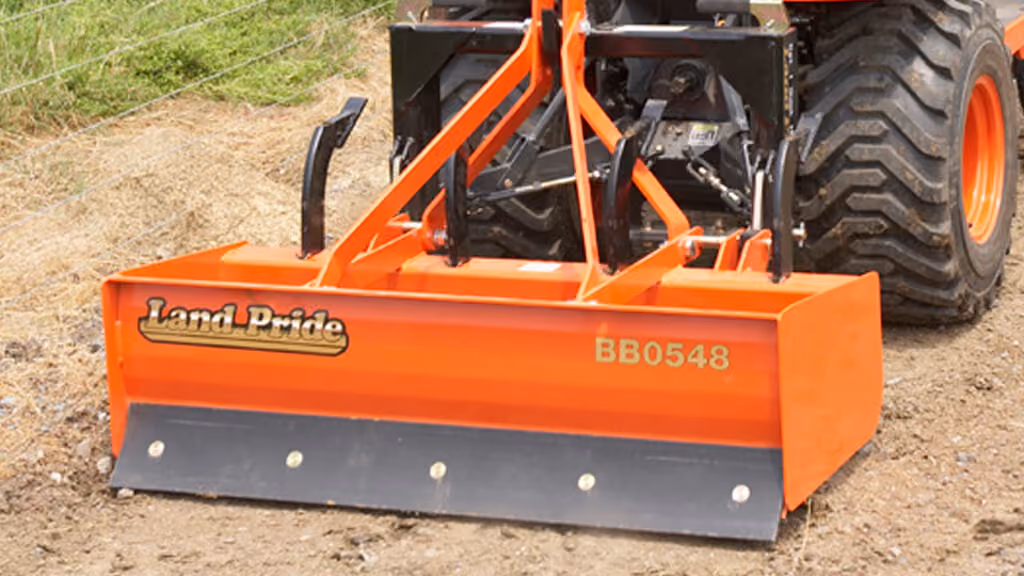

The BB05 Series Box Scrapers are ideal for light-duty ripping, leveling, finish grading, and backfilling applications at small feedlots, outdoor arenas, building sites, and maintenance operations on small farms and home owner driveways and roadways. The manually adjustable ripping shanks and the fore and aft cutting blades make these units especially effective and productive for small projects such as grading, light roadway maintenance, and feedlot maintenance.

Related Categories

Documents

Download Brochure BB05 Box Scraper Operator's Manual

No items found.

Features

Quick Hitch Compatible

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

5mm thick side panels

Strongest in class side panels add to the durability and strength of the Land Pride BB05 Series.

Square tube shank support

While many competitors use angle iron construction the Land Pride BB05 series uses a stronger box tube material for a robust design and excellent shank support.

Heat treated spring steel shanks

The Land Pride BB05 series uses 3-position heat treaded shanks. Tips are also heat treated and dimpled on for durability and ease of replacement.

Rear Backfill Blade

The BB05 Series comes standard with a heat treated reversible and replaceable rear cutting blade. This enables easy backfilling of trenches or foundations.

Key Specifications

{"version":1,"models":[{"code":"BB0548"},{"code":"BB0554"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["17 hp","17 hp"]},{"label":"Max. Horsepower","values":["25 hp","25 hp"]},{"label":"Hitch - Cat I","values":["Yes","Yes"]},{"label":"Working Width","values":["122 cm","122 cm"]},{"label":"Height of Moldboard","values":["338 mm","338 mm"]},{"label":"Side Panel Material","values":["5 mm","5 mm"]},{"label":"Depth of Bucket","values":["470 mm","470 mm"]},{"label":"Weight","values":["126 kg","135 kg"]},{"label":"Number of Shanks","values":["4","4"]},{"label":"Cutting Edge Width","values":["76 mm","76 mm"]},{"label":"Cutting Edge Thickness","values":["10 mm","10 mm"]}]}]}
