Box Scraper BB12 Series

Models

BB1248, BB1254, BB1260, BB1266, BB1272

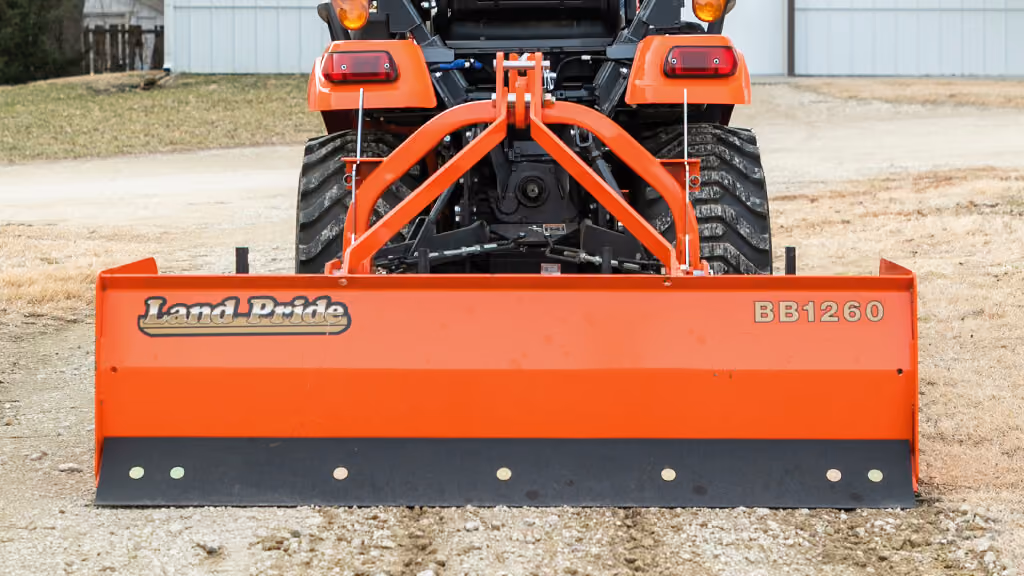

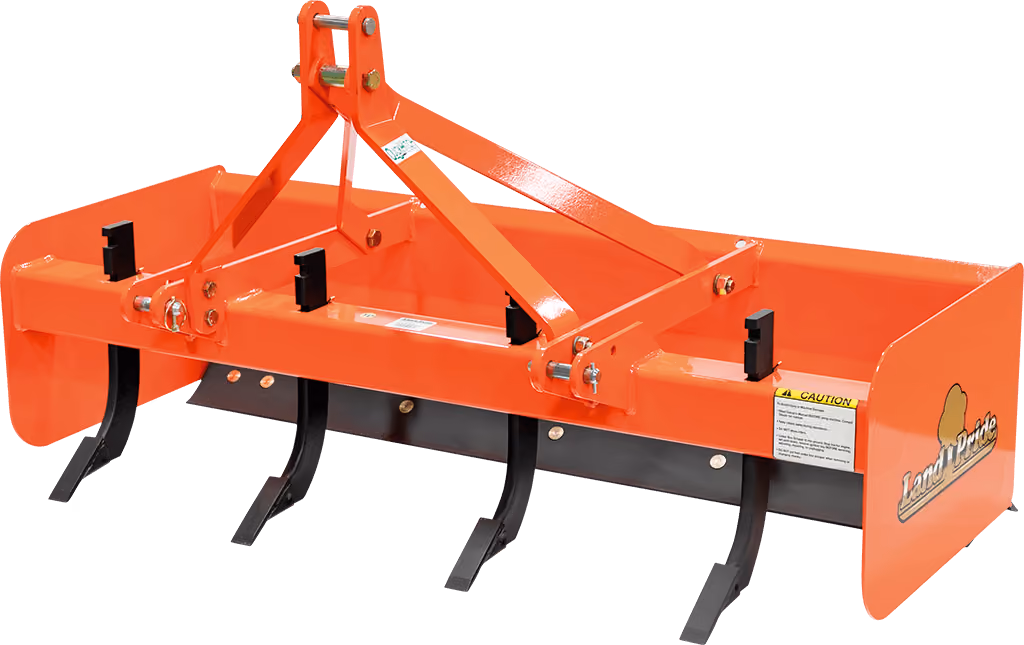

The Land Pride BB1248, BB12 Box Scrapers are designed for Category 1 - 3-point hitch or Quick-Hitch System mounting to tractors in the 30 hp range. These Box Scrapers are ideal for ripping, leveling, finish grading, and backfilling applications and offer forward and reverse cutting edges. The rear backfill blade allows for backfilling trenches or foundations. The stout 15-3/8" moldboard holds its shape under heavy loads.

Related Categories

Documents

Download Brochure BB12 Box Scraper Operator's Manual

No items found.

Features

Quick-Hitch Compatible

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

5mm thick side panels

Strongest in class side panels add to the durability and strength of the Land Pride BB12 Series.

Square tube shank support

While many competitors use angle iron construction the Land Pride BB12 series uses a stronger box tube material for a robust design and excellent shank support

Heat treated spring steel shanks

The Land Pride BB12 series uses 3-position heat treaded shanks. Tips are also heat treated and dimpled on for durability and ease of replacement.

Rear Backfill Blade

The BB12 Series comes standard with a heat treated reversible and replaceable rear cutting blade. This enables easy backfilling of trenches or foundations.

Key Specifications

{"version":1,"models":[{"code":"BB1248"},{"code":"BB1254"},{"code":"BB1260"},{"code":"BB1266"},{"code":"BB1272"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["17 hp","17 hp","17 hp","17 hp","17 hp"]},{"label":"Max. Horsepower","values":["30 hp","30 hp","30 hp","30 hp","30 hp"]},{"label":"Hitch - Cat I","values":["Yes","Yes","Yes","Yes","Yes"]},{"label":"Working Width","values":["122 cm","137 cm","152 cm","168 cm","183 cm"]},{"label":"Height of Moldboard","values":["390 mm","390 mm","390 mm","390 mm","390 mm"]},{"label":"Side Panel Material","values":["5 mm","5 mm","5 mm","5 mm","5 mm"]},{"label":"Depth of Bucket","values":["587 mm","587 mm","587 mm","587 mm","587 mm"]},{"label":"Weight","values":["143 kg","147 kg","157 kg","168 kg","183 kg"]},{"label":"Number of Shanks","values":["4","4","4","5","6"]},{"label":"Cutting Edge Width","values":["152 mm","152 mm","152 mm","152 mm","152 mm"]},{"label":"Cutting Edge Thickness","values":["10 mm","10 mm","10 mm","10 mm","10 mm"]}]}]}
