Box Scraper BB25 Series

Box Scraper BB25 Series

Models
BB2560, BB2566, BB2572, BB2584, BB2596

Land Pride's BB2560, BB2566, BB2572, BB2584 & BB2596 Fixed Bar Box Scrapers are ideal for building sites, feedlots, outdoor arenas, and on farm and ranch lanes or roadways. Two welded braces extending from front to rear of bucket plus welded gussets between the side panels and moldboard provide exceptional strength for keeping the Box Scraper square under heavy loads. Dirt rolls off of the roll-formed moldboard while scraping, creating less drag and you will get twice the wear on the cutting edge due to its reversability.

Related Categories

Agriculture
Agriculture
:
Implements.
Lifestyle
Lifestyle
:
Implements
Contact Us

Documents

Download BrochureBB25 Box Scraper Operator's Manual

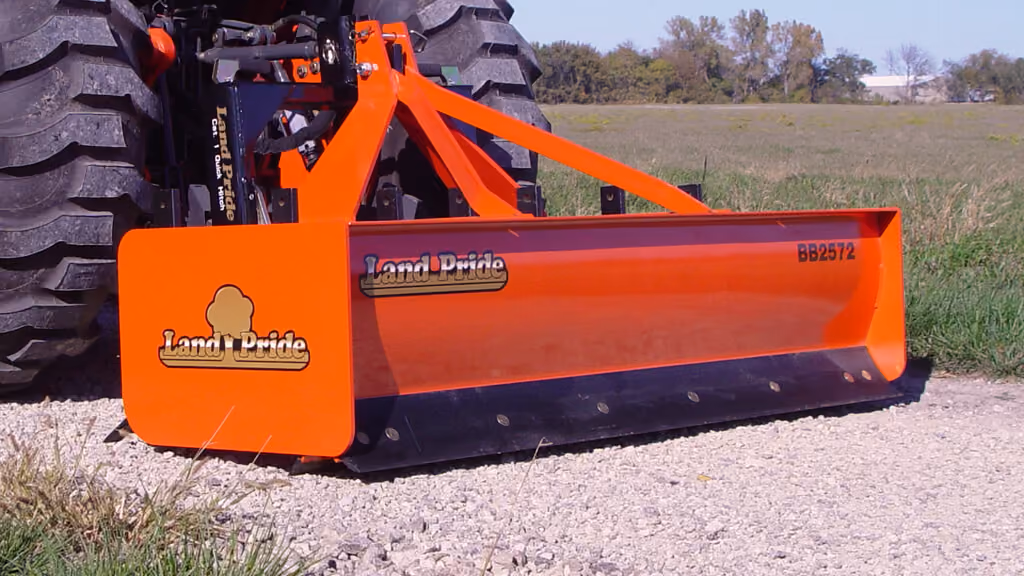

Orange grading attachment with wide steel blade.

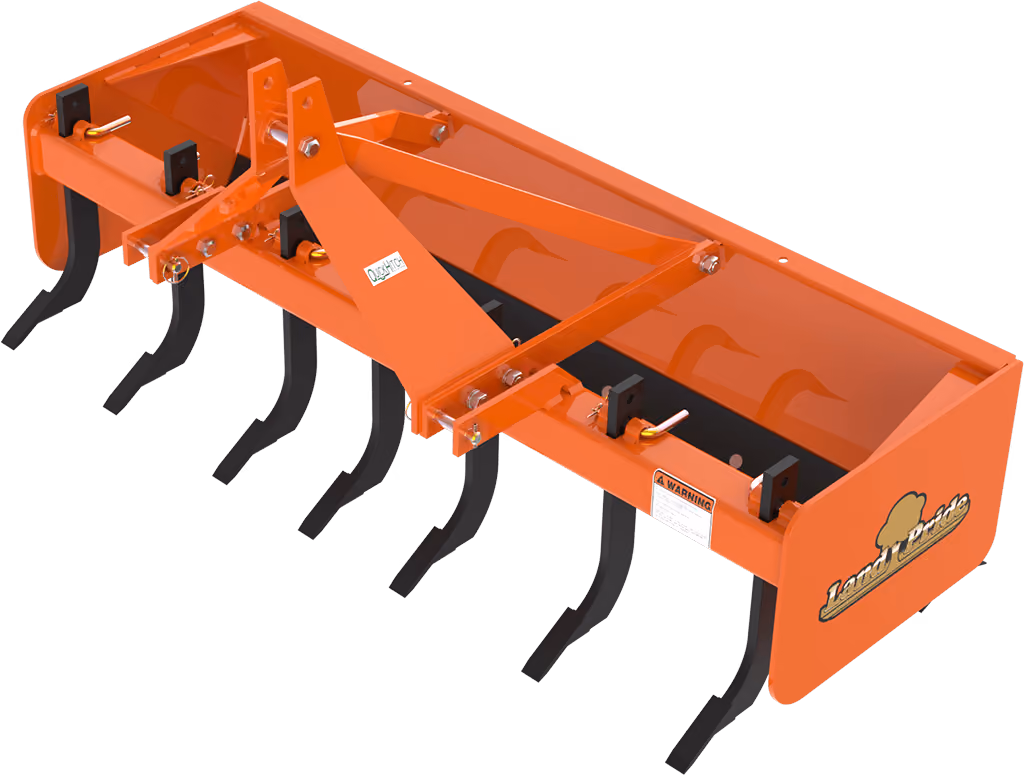

Orange grading attachment with wide steel blade on a white studio background.
No items found.

Features

Quick-Hitch Compatible

Detail highlighting Quick-Hitch Compatible on Box Scraper BB25 Series.

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

5mm tick side panels

Strongest in class side panels add to the durability and strength of the Land Pride BB05 Series.

Square Tube Shank Support

While many competitors use angle iron construction the Land Pride BB05 series uses a stronger box tube material for a robust design and excellent shank support.

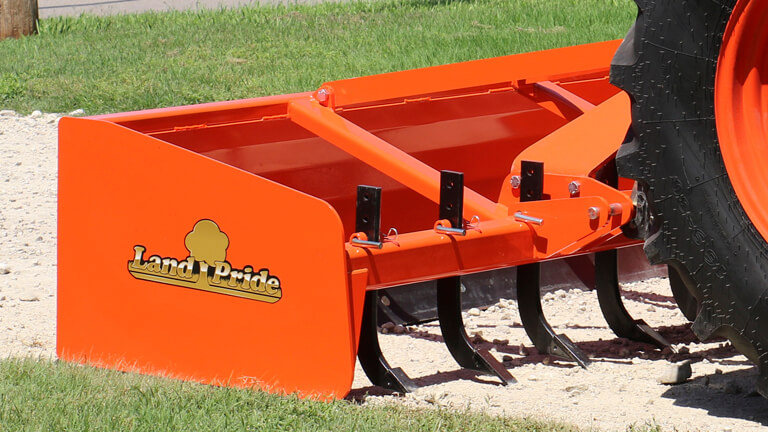

Heat Treated Spring Steel Shanks

Detail highlighting Heat Treated Spring Steel Shanks on Box Scraper BB25 Series.

The Land Pride BB05 series uses 3-position heat treaded shanks. Tips are also heat treated and dimpled on for durability and ease of replacement.

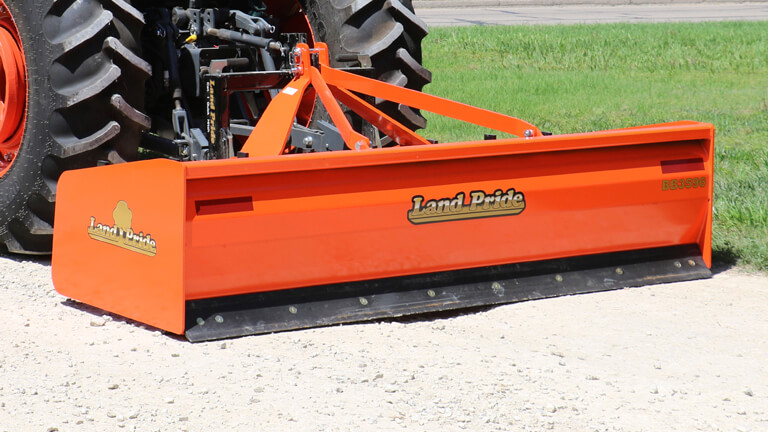

Rear Backfill Blade

Detail highlighting Rear Backfill Blade on Box Scraper BB25 Series.

The BB05 Series comes standard with a heat treated reversible and replaceable rear cutting blade. This enables easy backfilling of trenches or foundations.

Key Specifications

{"version":1,"models":[{"code":"BB2560"},{"code":"BB2566"},{"code":"BB2572"},{"code":"BB2584"},{"code":"BB2596"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["22 hp","22 hp","22 hp","22 hp","22 hp"]},{"label":"Max. Horsepower","values":["55 hp","55 hp","55 hp","55 hp","55 hp"]},{"label":"Hitch - Cat I","values":["Yes","Yes","Yes","Yes","Yes"]},{"label":"Working Width","values":["152 cm","167 cm","182 cm","213 cm","244 cm"]},{"label":"Height of Moldboard","values":["432 mm","432 mm","432 mm","432 mm","432 mm"]},{"label":"Side Panel Material","values":["10 mm","10 mm","10 mm","10 mm","10 mm"]},{"label":"Depth of Bucket","values":["559 mm","559 mm","559 mm","559 mm","559 mm"]},{"label":"Overall Length","values":["80 cm","80 cm","80 cm","80 cm","80 cm"]},{"label":"Overall Height","values":["88.9 cm","88.9 cm","88.9 cm","88.9 cm","88.9 cm"]},{"label":"Weight","values":["214 kg","227 kg","249 kg","269 kg","298 kg"]},{"label":"Number of Shanks","values":["5","5","7","7","8"]},{"label":"Cutting Edge Width","values":["152 mm","152 mm","152 mm","152 mm","152 mm"]},{"label":"Cutting Edge Thickness","values":["13 mm","13 mm","13 mm","13 mm","13 mm"]}]}]}
