Disc Harrow DH10 Series

Models

DH1048, DH1060

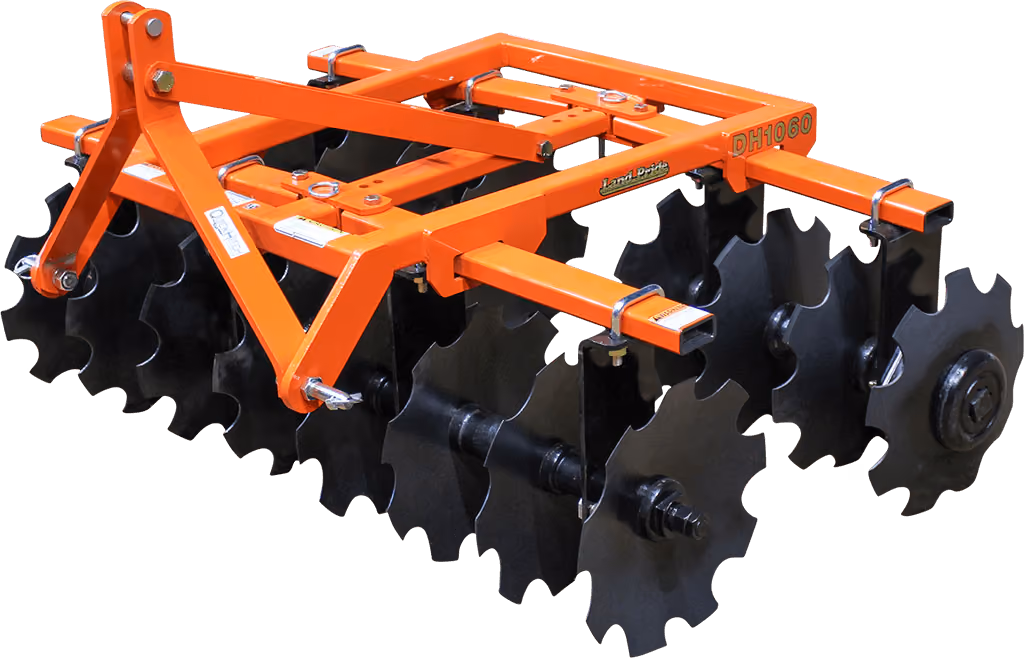

The Land Pride DH1048 & DH1060 Disc Harrow opens and breaks up the soil surface to help prepare the soil seedbed for planting. The forward gang has aggressive notched discs while the rear gang has a choice of notched or smooth discs to quickly break up and evenly redistribute the finely cultivated topsoil. Land Pride's DH1572 Disc Harrows are the ideal implement for landscapers and small acreage farmers. Disc gangs can be ordered with smooth or notched arrays for lighter or more aggressive applications based on customer needs. Land Pride's DH2596 Disc Harrows have applications in commercial landscaping, construction, farms, ranches, and municipal maintenance programs, and can be used in conjunction with Land Pride's seeding package - Seed Bed Roller, Electric Spin Spreader, and Drag Harrow.

Related Categories

Documents

Download Brochure DH10 Disc Harrow Operator's Manual Features and Benefits

No items found.

Features

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

SMOOTH OR NOTCHED DISCS

Choose notched blades for more aggressive digging and cutting action, or the smooth blades for light tilling.

ADJUSTABLE GANG ANGLES

Cutting aggressiveness can be adjusted on the front and rear up to 21 degrees.

HEAVY-DUTY BEARING HANGERS

Heavy-duty hangers resist the high torque from U-bolts and keep the discs out of the ground.

Key Specifications

{"version":1,"models":[{"code":"DH1048"},{"code":"DH1060"}],"sections":[{"name":"Specifications","rows":[{"label":"Max. Horsepower","values":["40 hp","40 hp"]},{"label":"Hitch - Cat I","values":["Yes","Yes"]},{"label":"Working Width","values":["122 cm","152 cm"]},{"label":"Weight","values":["191 kg","249 kg"]},{"label":"Disc Blade Size","values":["16\" (406mm)","16\" (406mm)"]},{"label":"Disc Type","values":["Notched","Notched"]},{"label":"No. Disc Blades","values":["12","16"]},{"label":"Disc Blade Spacing","values":["190 mm","190 mm"]},{"label":"Gang Mount","values":["2 Bearings","2 Bearings"]},{"label":"Max. Gang Angle","values":["21°","21°"]},{"label":"Frame Tubes - Square","values":["50 mm","50 mm"]},{"label":"Gang Axle Diameter","values":["25 mm","25 mm"]},{"label":"Weight Per Disc","values":["16 kg","15 kg"]},{"label":"Center Sweep Option","values":["N/A","N/A"]},{"label":"Disc Scrapers","values":["N/A","N/A"]}]}]}
