Disc Harrow DH15 Series

Models

DH1560, DH1572, DH1590

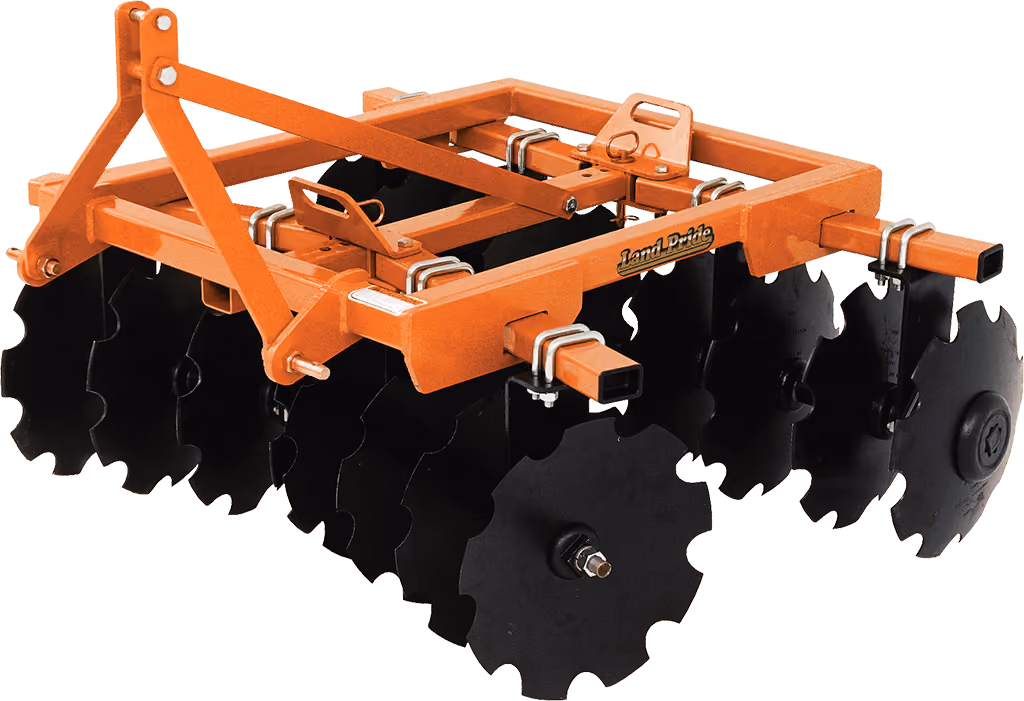

Land Pride's DH1560, DH1572 & DH1590 Disc Harrows break up the ground with their heavy-duty frames and heat treated disc blades, making them ideal for landscapers and small acreage farmers. Disc gangs can be ordered with smooth or notched arrays for lighter or more aggressive applications based on customer needs. The DH15 Series Disc Harrows are at home in applications from commercial landscaping, nurseries, and large gardens to small farms and municipal beautification programs.

Related Categories

Documents

Download Brochure DH15 Disc Harrow Operator's Manual Features and Benefits

No items found.

Features

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

SMOOTH OR NOTCHED DISCS

Choose notched blades for more aggressive digging and cutting action, or the smooth blades for light tilling.

GANG ADJUSTMENT HANDLE

Easy angle adjustments - no tools required.

HEAVY-DUTY BEARING HANGERS

Heavy-duty hangers resist the high torque from U-bolts and keep the discs out of the ground.

OPTIONAL DISC SCRAPERS

Disc scrapers are available to reduce build-up on discs.

Key Specifications

{"version":1,"models":[{"code":"DH1560"},{"code":"DH1572"},{"code":"DH1590"}],"sections":[{"name":"Specifications","rows":[{"label":"Max. Horsepower","values":["65 hp","65 hp","65 hp"]},{"label":"Hitch - Cat I","values":["Yes","Yes","Yes"]},{"label":"Working Width","values":["152 cm","183 cm","229 cm"]},{"label":"Weight","values":["285 kg","324 kg","392 kg"]},{"label":"Disc Blade Size","values":["18\" (457mm)","18\" (457mm)","18\" (457mm)"]},{"label":"Disc Type","values":["Notched","Notched","Notched"]},{"label":"No. Disc Blades","values":["16","20","24"]},{"label":"Disc Blade Spacing","values":["190 mm","190 mm","190 mm"]},{"label":"Gang Mount","values":["2 Bearings","2 Bearings","2 Bearings"]},{"label":"Max. Gang Angle","values":["21°","21°","21°"]},{"label":"Frame Tubes - Square","values":["64 mm","64 mm","64 mm"]},{"label":"Gang Axle Diameter","values":["25 mm","25 mm","25 mm"]},{"label":"Weight Per Disc","values":["17 kg","15 kg","16 kg"]},{"label":"Center Sweep Option","values":["229 mm","229 mm","229 mm"]},{"label":"Disc Scrapers","values":["Standard","Standard","Standard"]}]}]}
