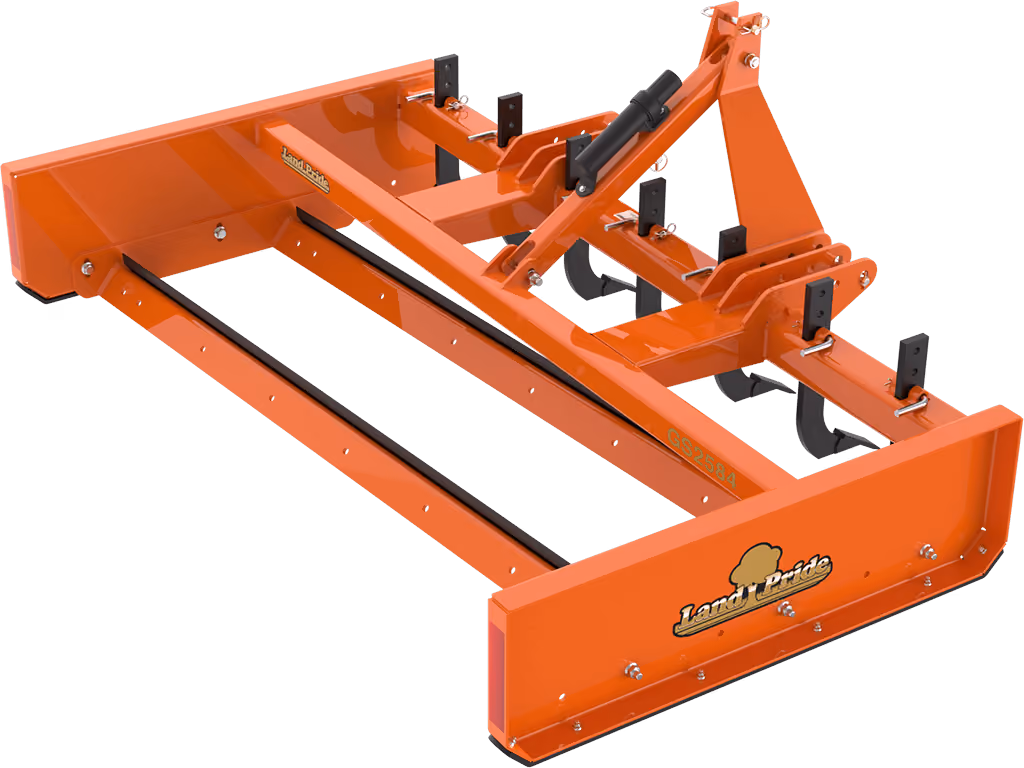

Grading Scraper GS25 Series

Models

GS2572, GS2584, GS2596

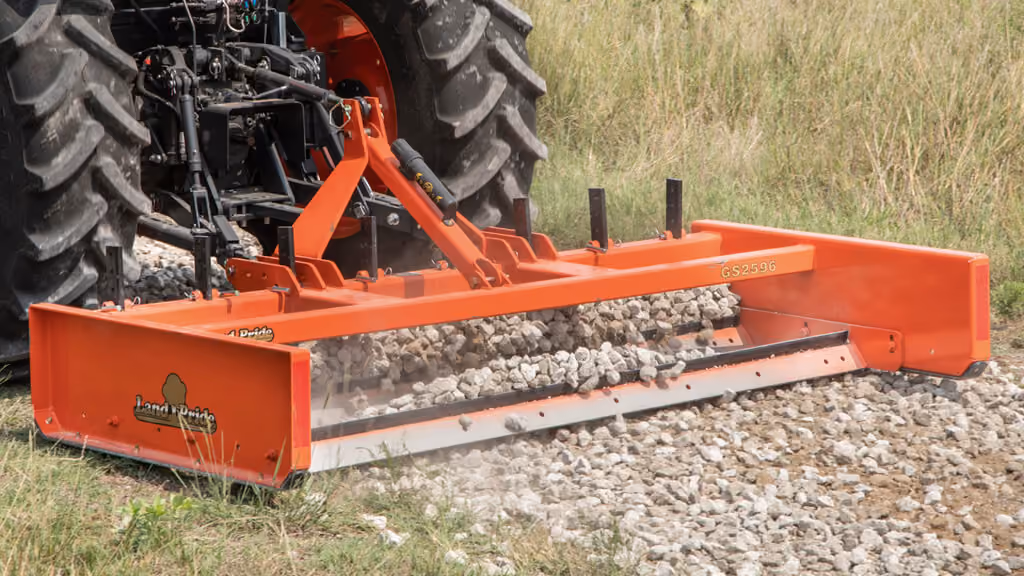

Land Pride's GS2572, GS2584 & GS2596 Grading Scrapers are ideal for renovating gravel driveways and roads, leveling construction and turf sites, and cleaning barns and chicken coups. Grading Scrapers have uses in applications such as landscaping operations, farms, ranches, construction sites, hunting camps, logging sites, mining operations, large estates, small acreages, sod farms, and municipal and county rural road maintenance facilities. These Grading Scrapers are extra user-friendly and a low cost alternative for road grading applications.

Related Categories

Documents

Download Brochure GS25 Grading Scraper Operator's Manual

No items found.

Features

QUICK-HITCH COMPATIBLE

Cat. 1 & Cat. 2 Quick-Hitch compatible. Has lower hitch clevis type mountings which make for faster and easier hook-up to the tractor. Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

HARDENED TIPS

Hardened tips on scarifier shanks assure long service life.

GRADING BLADES

Reversible, heat-treated, high-carbon steel grading blades offer excellent wear resistance and long service life.

SKID SHOES

Replaceable and reversible full length skid shoes make for easier operation and long unit life.

ADJUSTABLE HEIGHT

Dual, adjustable height grading blades and optional 4-position scarifier shanks allow the scraper to be adjusted to desired amount of cultivation, leveling, and grading action.

Key Specifications

{"version":1,"models":[{"code":"GS2572"},{"code":"GS2584"},{"code":"GS2596"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["40 hp","40 hp","40 hp"]},{"label":"Max. Horsepower","values":["90 hp","90 hp","90 hp"]},{"label":"Hitch - Cat I","values":["Yes","Yes","Yes"]},{"label":"Hitch - Cat II","values":["Yes","Yes","Yes"]},{"label":"Working Width","values":["183 cm","213 cm","244 cm"]},{"label":"Side Panel Thickness","values":["6.3 mm","6.3 mm","6.3 mm"]},{"label":"Skid Shoe Thickness","values":["10 mm","10 mm","10 mm"]},{"label":"Number of Shank Positions","values":["4","4","4"]},{"label":"Cutting Edge Width","values":["152 mm","152 mm","152 mm"]},{"label":"Cutting Edge Thickness","values":["12.7 mm","12.7 mm","12.7 mm"]},{"label":"Cutting Edge Adjustment","values":["Adjustable","Adjustable","Adjustable"]},{"label":"Weight","values":["330 kg","361 kg","392 kg"]}]}]}
