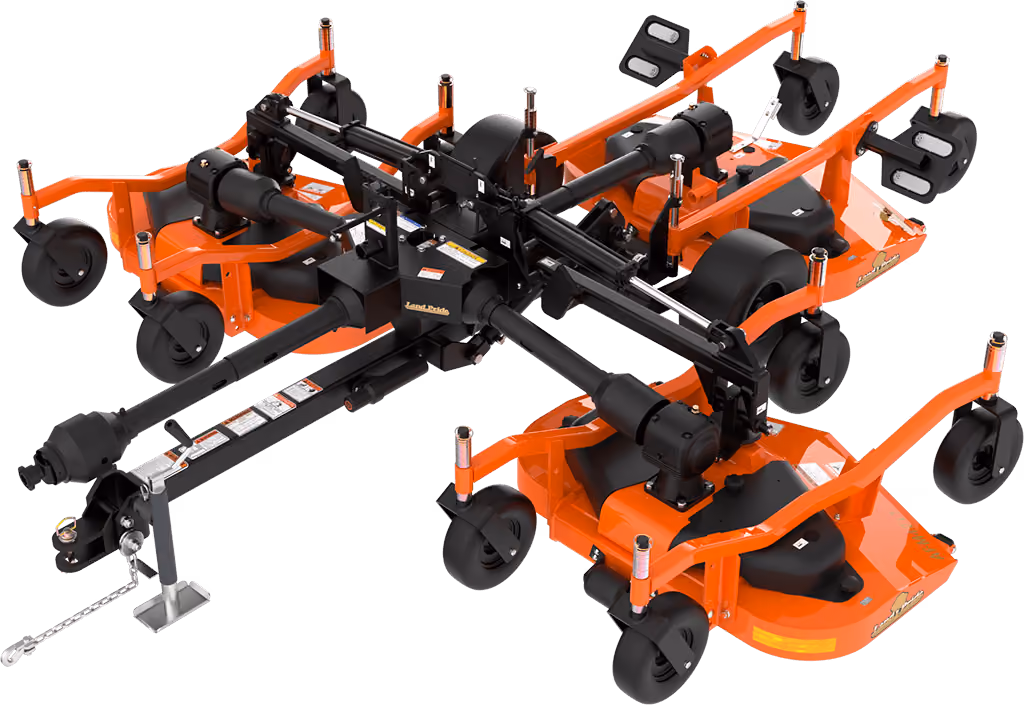

Grooming Mowers AFM42 Series

Models

AFM4211, AFM4214, AFM4216

Land Pride's AFM42 Series All-Flex Mower provides excellent cut quality and performance on lush turf grasses on expansive and well manicured areas such as fairways, parks, lawns, and sports fields. The AFM42 series offers independent deck flotation and zero turning radius due to the sleek frame design. The contour following capability, highly productive cutting widths, and rear discharge design of the floating cutting decks will greatly reduce wide-area cutting times and still deliver finely groomed surfaces at mowing speeds up to 10 km/h.

Related Categories

Documents

Download Brochure

No items found.

Features

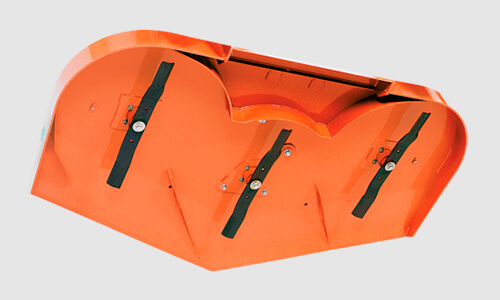

Rear discharge

Rear discharge with integrated deflectors to evenly spread cut grass for a high quality finish. Discharged foreign objects are aimed downward for improved safety. No rear chains are needed, which tend to clump damp grass.

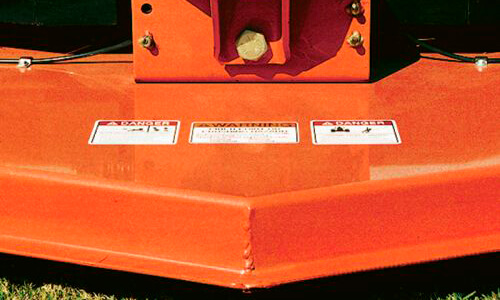

Mower deck & blades

Heavy duty 3/16" (4.8mm) thick deck with 5/16" (7.9mm) front edge and fully welded seams for exceptional strength. Medium lift blades are supplied as standard with optional low lift, high lift and mulching blades available to suit different operating conditions. High blade tip speeds of 81.4 m/sec on AFM4211 allows exceptional cut quality.

Gearbox

A 5 year limited gearbox warranty applies.

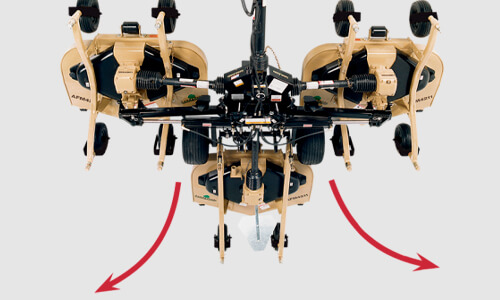

Counter blade rotation on left deck

Spreads grass clippings more evenly. Wing decks throw grass away from the rear deck. Rear deck doesn’t get covered up nor does it get bogged down by cut grass. This results in an even and consistent finish.

Low horsepower requirement

The AFM42 series can operate on tractors with as low as 30hp. The transmission is a highly efficient design with low power consumption meaning low fuel use and economical operating costs.

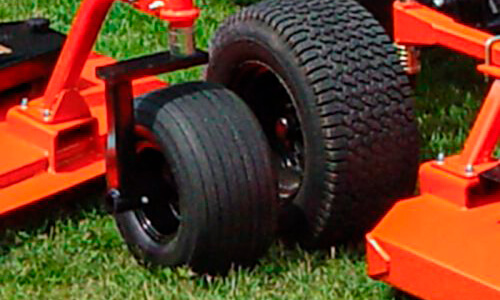

Non-caster rear wing deck wheels

Non-caster rear side deck wheels mean improved manoeuvrability and better control on hills or undulating ground.

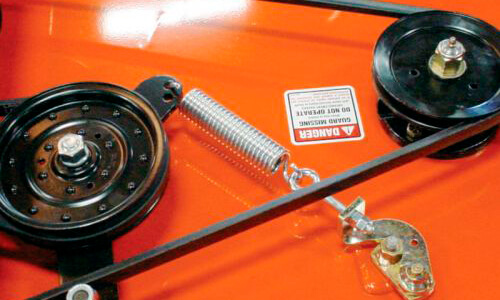

Spring loaded idlers on deck belts

Spring loaded idlers apply constant deck belt tension and reduce maintenance.

Key Specifications

{"version":1,"models":[{"code":"AFM4211"},{"code":"AFM4214"},{"code":"AFM4216"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["30 hp","40 hp","40 hp"]},{"label":"Max. Horsepower","values":["65 hp","70 hp","70 hp"]},{"label":"Weight","values":["925 kg","1429 kg","1572 kg"]},{"label":"Discharge","values":["Rear","Rear","Rear"]},{"label":"Deck Material Thickness","values":["5 mm","5 mm","5 mm"]},{"label":"Anti-Scalp Roller","values":["Yes","Yes","Yes"]},{"label":"Gearbox Design","values":["Cast Iron Housing with Beveled Gears","Cast Iron Housing with Beveled Gears","Cast Iron Housing with Beveled Gears"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["3.38 m","4.27 m","5.08 m"]},{"label":"Transport Width","values":["2.34 m","2.41 m","2.57 m"]},{"label":"Min. Cutting Height","values":["25 mm","19 mm","19 mm"]},{"label":"Max. Cutting Height","values":["140 mm","133 mm","133 mm"]},{"label":"Cutting Height Increments","values":["6 mm","6 mm","6 mm"]}]},{"name":"Hitch","rows":[{"label":"Hitch","values":["Adjustable Clevis","Adjustable Clevis","Adjustable Clevis"]}]},{"name":"Blades","rows":[{"label":"Blades Per Spindle","values":["2","2",""]},{"label":"Number of Blades Per Deck","values":["6","6","6"]},{"label":"Blade Thickness","values":["6 mm","8 mm","8 mm"]},{"label":"Blade Width","values":["64 mm","64 mm","64 mm"]},{"label":"Blade Length","values":["429 mm","531 mm","635 mm"]},{"label":"Blade Overlap","values":["30 mm","32 mm","32 mm"]},{"label":"Blade Tip Speed","values":["81.4 m/s","93.5 m/s","93.2 m/s"]},{"label":"Blade Per Spindle","values":["","","2"]}]},{"name":"Tyres","rows":[{"label":"Number of Wheels Per Deck","values":["4","4","4"]},{"label":"Deck Wheel Type","values":["Castered Gauge Wheel","Castered Gauge Wheel","Castered Gauge Wheel"]},{"label":"Deck Tyre Material","values":["Semi-Solid","Semi-Solid","Semi-Solid"]},{"label":"Wheel Width","values":["125 mm","241 mm","241 mm"]},{"label":"Transport Tyre Diameter","values":["457 mm","584 mm","584 mm"]},{"label":"Deck Wheel Spindle Diameter","values":["32 mm","32 mm","32 mm"]}]},{"name":"Drive Train","rows":[{"label":"PTO Speed","values":["540 rpm","540 rpm","540 rpm"]},{"label":"Blade Drive Belt","values":["B-Section","B-Section","B-Section"]},{"label":"Drive Belt Tensioning","values":["Spring Loaded Idler","Spring Loaded Idler with Overcenter Release","Spring Loaded Idler with Overcenter Release"]}]}]}
