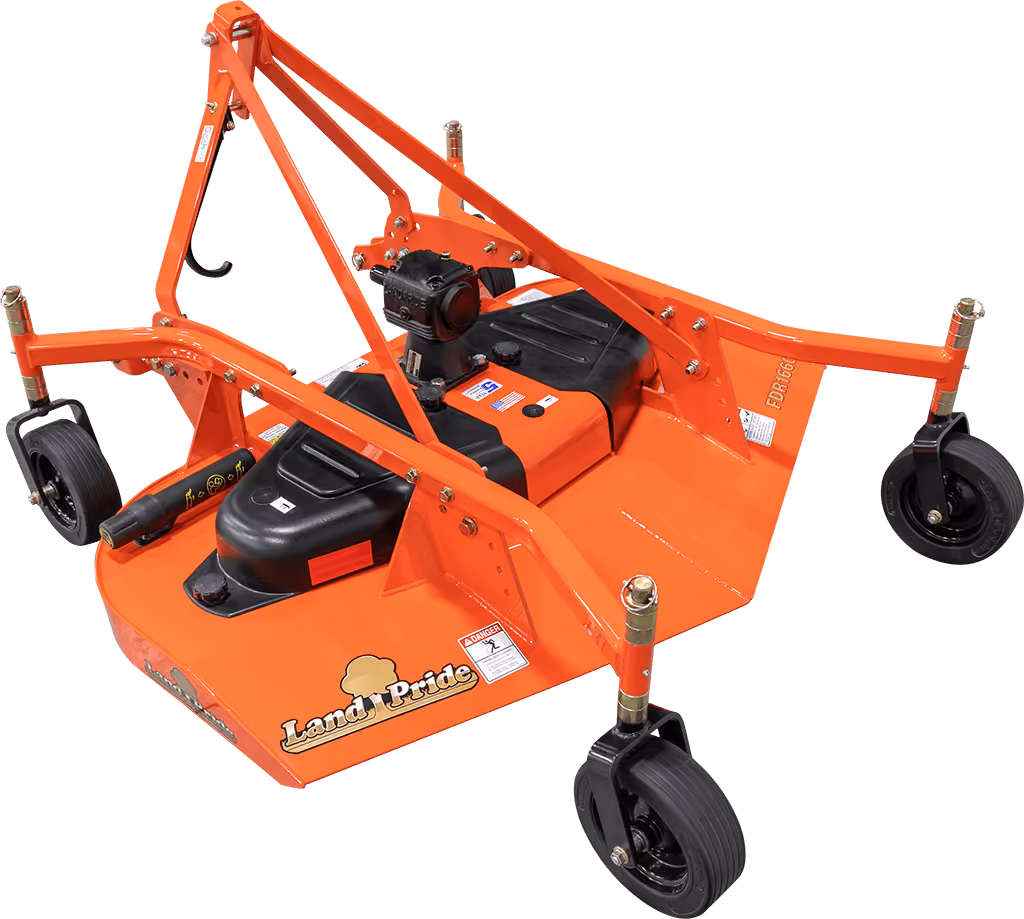

Grooming Mowers FDR16 Series

Models

FDR1648, FDR1660, FDR1672

Land Pride Grooming Mowers are a rear-mount alternative to a belly-mount mower for your subcompact and compact tractor. With three fixed blades and a floating 3-Point hitch, these mowers give you a clean cut in fescue and other turf-type grasses.

Related Categories

Documents

Download Brochure Features document

No items found.

Features

Tapered rear discharge

The tapered rear discharge directs debris toward the ground eliminating the need for chains which provides for a more even distribution of clippings.

Driveline

The driveline storage hook keeps the driveline off the ground when not in use.

Floating hitch points

Top and bottom hitch points float up and down which allows the mower to float over uneven terrain.

Non-aligned rear gauge

Non-aligned rear gauge wheels don't track behind the front wheels to reduce laying grass over.

Key Specifications

{"version":1,"models":[{"code":"FDR1648"},{"code":"FDR1660"},{"code":"FDR1672"}],"sections":[{"name":"Specifications","rows":[{"label":"Horsepower","values":["15-40 hp","15-40 hp","15-40 hp"]},{"label":"Weight","values":["220 kg","262 kg","281 kg"]},{"label":"Deck Material Thickness","values":["3/16 \"","3/16 \"","3/16 \""]},{"label":"Front Roller","values":["Optional","Optional","Optional"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["122 cm","152 cm","183 cm"]},{"label":"Overall Width","values":["130 cm","160 cm","190 cm"]},{"label":"Cutting Height (min)","values":["3/4 \"","3/4 \"","3/4 \""]},{"label":"Cutting Height (max)","values":["5-1/4 \"","5-1/4 \"","5-1/4 \""]}]},{"name":"Hitch","rows":[{"label":"Hitch","values":["Cat. I","Cat. I","Cat. I"]},{"label":"Quick Hitch Compatible","values":["No","Yes","Yes"]}]},{"name":"Blades","rows":[{"label":"Blade material","values":["Heat Treated Alloy Steel","Heat Treated Alloy Steel","Heat Treated Alloy Steel"]},{"label":"Number of blades","values":["4","4","4"]},{"label":"Blades (length)","values":["1/4 \"","1/4 \"","1/4 \""]},{"label":"Blades (width)","values":["2-1/2 \"","2-1/2 \"","2-1/2 \""]},{"label":"Blades (height)","values":["16-7/8 \"","21 \"","25 \""]},{"label":"Blade overlap","values":["1-1/4 \"","1-1/4 \"","1-1/4 \""]},{"label":"Blade spindles","values":["Greasable","Greasable","Greasable"]},{"label":"Blade tip speed","values":["16203 fpm","18195 fpm","18130 fpm"]}]},{"name":"Tyres","rows":[{"label":"Number of wheels","values":["4","4","4"]},{"label":"Wheel type","values":["Castered gauge wheel","Castered gauge wheel","Castered gauge wheel"]},{"label":"Tire material","values":["Solid rubber","Solid rubber","Solid rubber"]},{"label":"Wheel (width)","values":["3-1/4 \"","3-1/4 \"","3-1/4 \""]},{"label":"Wheel (height)","values":["10 \"","10 \"","10 \""]},{"label":"Castered Wheel Spindle (diameter)","values":["1 \"","1 \"","1 \""]}]},{"name":"Drive Train","rows":[{"label":"Speed","values":["540 rpm","540 rpm","540 rpm"]},{"label":"Section","values":["B","B","B"]},{"label":"Belt","values":["V","V","V"]},{"label":"Driveline","values":["Heavy duty with quick coupler","Heavy duty with quick coupler","Heavy duty with quick coupler"]}]}]}
