Grooming Mowers FDR36 Series

Models

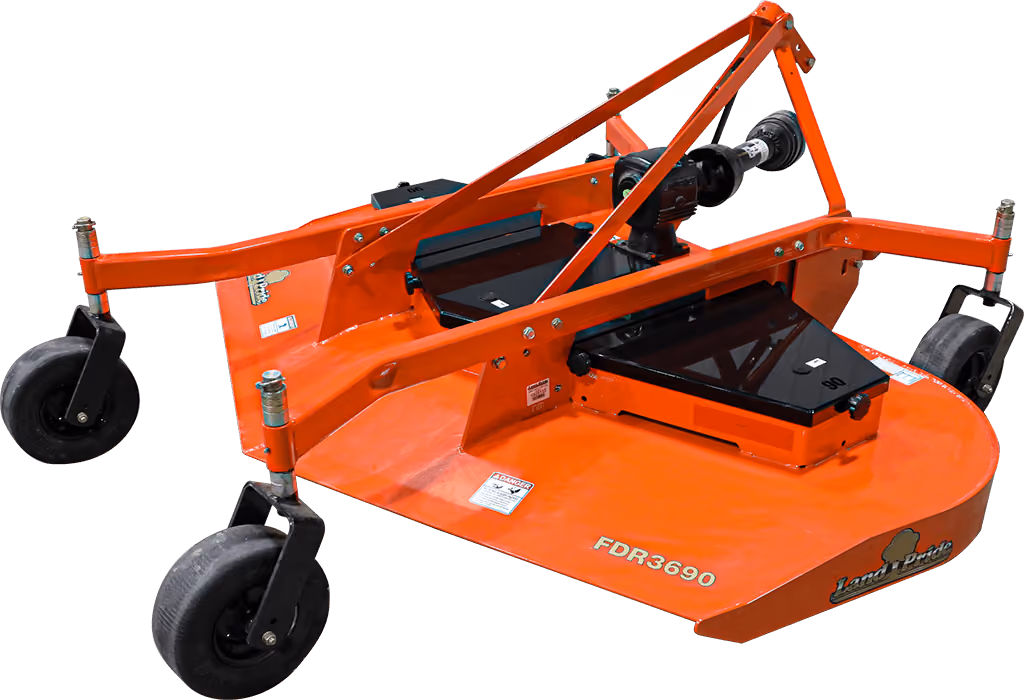

FDR3690

Our FDR3690 Grooming Mower is built for commercial use by mowing contractors. Contractors will appreciate the ease of maintenance and the 6 free-swinging mediumlift blades that provide a uniform cut in heavy turf grasses. The tapered deck design allows operators to get close to obstacles while the rear discharge directs debris toward the ground, allowing for even distribution of clippings.

Related Categories

Documents

Download Brochure Features & Benefits

No items found.

Features

Rear discharge

Rear discharge distributes an even layer of grass directly behind the mower, keeping grass from blowing in unwanted areas.

Mower deck & blades

The FDR36 frame-over-deck design is engineered for maximum airflow, featuring a roll-formed 1/4" leading edge, 6 free-swinging blades and a tapered and sloped rear deflector.

Gearbox

A 5 year limited gearbox warranty applies.

Key Specifications

{"version":1,"models":[{"code":"FDR3690"}],"sections":[{"name":"Specifications","rows":[{"label":"Horsepower","values":["30-70 hp"]},{"label":"Weight","values":["422 kg"]},{"label":"Discharge","values":["rear"]},{"label":"Deck Material Thickness","values":["3/16 \""]},{"label":"Front roller","values":["Optional"]},{"label":"Gearbox rating","values":["540 rpm"]},{"label":"Gearbox design","values":["Cast iron housing with beveled gears"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["229 cm"]},{"label":"Overall Width","values":["234 cm"]},{"label":"Cutting Height (min)","values":["1 \""]},{"label":"Cutting Height (max)","values":["6-1/2"]},{"label":"Cutting Height Increments","values":["1/4 \""]},{"label":"Cutting Height Spacers","values":["plated"]}]},{"name":"Hitch","rows":[{"label":"Hitch","values":["Cat. 1"]},{"label":"Lower Hitch","values":["Floating clevis w/ plated pins"]},{"label":"Top link","values":["Floating clevis"]}]},{"name":"Blades","rows":[{"label":"Blade per spindle","values":["2"]},{"label":"Number of blades","values":["6"]},{"label":"Blade thickness","values":["1/4 \""]},{"label":"Blade width","values":["2-1/2 \""]},{"label":"Blade length","values":["14 \""]},{"label":"Blade overlap","values":["2 \""]},{"label":"Blade spindles","values":["1-3/8 \""]},{"label":"Shaft","values":["Stressproof®"]},{"label":"Deck spindle housings","values":["Cast iron greaseable hubs"]},{"label":"Blade tip speed","values":["16500 fpm"]}]},{"name":"Tyres","rows":[{"label":"Number of wheels","values":["4"]},{"label":"Wheel type","values":["Castered gauge wheel"]},{"label":"Tire material","values":["Semi-solid"]},{"label":"Wheel (width)","values":["4 \""]},{"label":"Wheel (height)","values":["11 \""]},{"label":"Castered Wheel Spindle (diameter)","values":["1 \""]}]},{"name":"Drive Train","rows":[{"label":"Speed","values":["540 rpm"]},{"label":"Belt","values":["Double V powered"]},{"label":"Driveline","values":["Heavy duty with quick coupler"]},{"label":"Belt take-up","values":["Spring loader idler"]}]}]}
