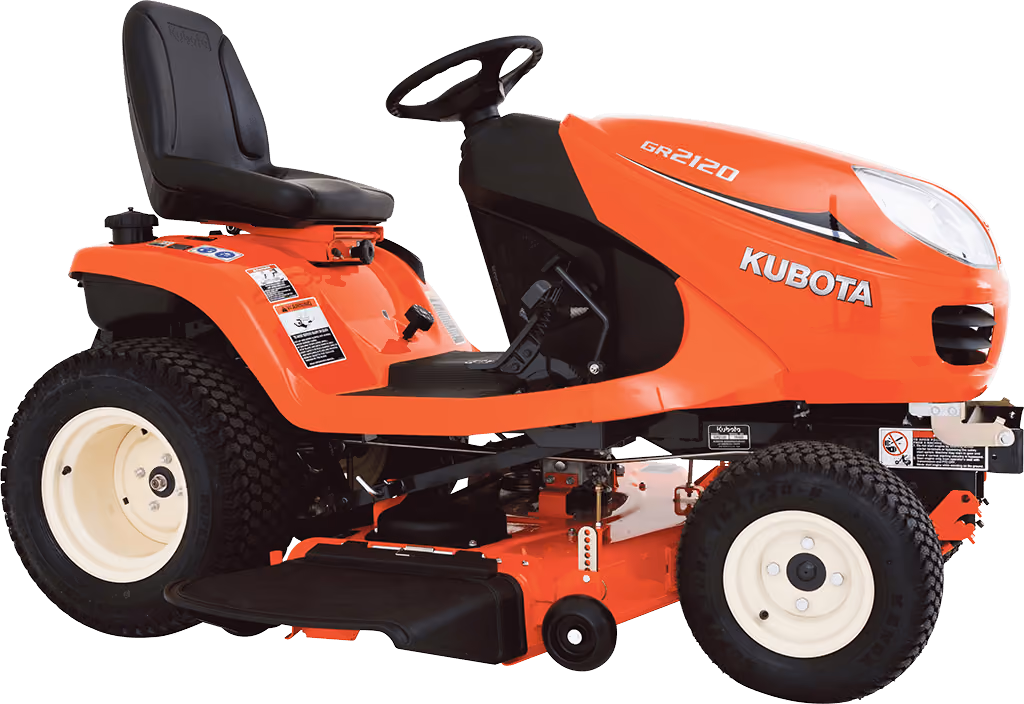

Kubota GR-Series Ride-On Mower

Models

GR2120-48, GR2120-54

Kubota's GR Series all-wheel drive, diesel-powered ride-on mowers are built to last. Fuel efficient, reliable and requiring little routine maintenance, the GR Series is ideal for residential operators that require a mower that tackles hilly terrain and the toughest mowing jobs with ease. Contoured mower decks come in two sizes, 48" and 54" that raise and lower hydraulically. The GR2120 is equipped with Kubota’s exclusive ‘Glide Steer’ technology, which offers excellent manoeuvrability and exceptional traction while preventing turf damage.

Related Categories

Documents

Download Brochure GR Series Ride-on Mower Operator's Manual

No items found.

Features

Diesel Powered

Tapping Kubota’s legendary heritage of quality engine design, the GR2120 is powered by a Kubota 17HP, 3-cylinder diesel engine, generating a high torque rise that easily handles hours of heavy-duty mowing.

Glide Steer Technology

GR2120 with Glide Steer technology excels where 4WD traction and efficient mowing are needed. Only revolutionary technology by Kubota enables the GR2120 to turn sharply, yet minimise potential turf damage to levels below standard 2WD lawn tractors.

Offering precise control and exceptional traction with ‘Glide Steer’, the GR2120 not only cut in confined areas, they cut down overall mowing time as well. Add it all up, and you have the most manoeuvrable and powerful lawn tractor on the market.

Front wheels can turn up to 70 degrees, and inside rear wheel track freely when completing turns, enabling extremely tight turning.

Transmission

Kubota’s reputable HST transmission is easily controlled by a single foot pedal that produces a smooth and comfortable ride. Unlike a belt-drive transmissions utilised in conventional mowers, our low-maintenance shaft-drive transmission will provide years and years of reliable service. Perfect for rolling terrain, the GR series all-wheel drive delivers outstanding traction when you need it most.

Hydraulic PTO and shaft drives are only a few farm tractor features that distinguish the GR from its competition. Our shaft-drive mower deck and hydraulic PTO clutch deliver reliability with far less maintenance. No more belts and pulleys to maintain.

High End Features

Starting with a 8mm U-frame platform, every component from the ground up has been designed to provide significant durability for years of service.

Soft-touch power steering enhances manoeuvrability, reduces fatigue, and makes operating the GR2120 effortless.

Mower Deck

Contoured mower decks come in two sizes, 48" and 54" that raise and lower hydraulically. Height adjustment dial allows the operator to easily and quickly adjust the mower cut height from 1″ to 4″, in 1/4″ increments. Constructed of durable 10 gauge steel and designed with a 5-inch deep shell for professional and lasting results.

Optional mulching kit is a one-piece unit that's easy to install and optional 350-litre grass catcher is available to order.

Super-Comfortable

Oversized and generously padded, the GR2120’s suspension seat can be adjusted to provide a high level of comfort to a wide range of operators. The full-flat open platform minimises operator fatigue with plenty of legroom. Weight adjustment dial allows the operator to customise the seat suspension for increased comfort.

Ergonomically positioned to the left of the operator, the hydraulic lever provides simple and effortless lift/ lower operations of the mower deck.

Key Specifications

{"version":1,"models":[{"code":"GR2120-48"},{"code":"GR2120-54"}],"sections":[{"name":"Engine","rows":[{"label":"Engine Type","values":["Water cooled","Water cooled"]},{"label":"Fuel Type","values":["Diesel","Diesel"]},{"label":"Cylinders","values":["3","3"]},{"label":"Engine Model","values":["Kubota D782","Kubota D782"]},{"label":"Engine Gross","values":["17 hp","17 hp"]},{"label":"Displacement","values":["778 cc","778 cc"]},{"label":"Fuel Tank Capacity","values":["18 l","18 l"]}]},{"name":"Drive Train","rows":[{"label":"Transmission","values":["HST, Shaft Drive","HST, Shaft Drive"]},{"label":"Drive Method","values":["4 w/Cruise control","4 w/Cruise control"]},{"label":"Brakes","values":["Internal expanding brake","Internal expanding brake"]},{"label":"PTO Clutch","values":["Hydraulic wet multi discs","Hydraulic wet multi discs"]}]},{"name":"Tyre Size","rows":[{"label":"Front","values":["16 × 7.5 – 8",""]},{"label":"Rear","values":["23 × 10.50 – 12",""]}]},{"name":"Travelling Speeds","rows":[{"label":"Max. Forward Speed","values":["10 km/h","10 km/h"]},{"label":"Max. Reverse Speed","values":["5 km/h","5 km/h"]}]},{"name":"Mower Deck","rows":[{"label":"Model","values":["RCK48GR","RCK54GR"]},{"label":"Cutting Width","values":["1219 mm","1372 mm"]},{"label":"Lifting Device","values":["Hydraulic","Hydraulic"]},{"label":"Mower Mounting Method","values":["Parallel linkage","Parallel linkage"]},{"label":"Cutting Height","values":["25 - 102 mm","25 - 102 mm"]},{"label":"Cutting Height Adjustment","values":["Dial gauge","Dial gauge"]},{"label":"Cutting Height Increments","values":["1/4\"","1/4\""]},{"label":"Number of Blades","values":["3","3"]},{"label":"Direction of Discharge","values":["Right side","Right side"]},{"label":"Minimum Uncut Diameter","values":["1100 mm","900 mm"]},{"label":"Mower Deck Ground Clearance","values":["140 mm","140 mm"]}]},{"name":"Grass Catcher","rows":[{"label":"Bag Type","values":["3 Bag, Manual Dump, Blower Assembly","3 Bag, Manual Dump, Blower Assembly"]},{"label":"Bag Capacity","values":["247 l","247 l"]},{"label":"Hopper Type","values":["No","No"]},{"label":"Hopper Capacity","values":["No","No"]}]},{"name":"Dimensions","rows":[{"label":"Length","values":["1960 mm","1960 mm"]},{"label":"Width","values":["1700 mm","1700 mm"]},{"label":"Height","values":["1290 mm","1290 mm"]},{"label":"Wheelbase","values":["1280 mm","1280 mm"]},{"label":"Ground Clearance","values":["140 mm","140 mm"]},{"label":"Tread Front","values":["825 mm","825 mm"]},{"label":"Tread Rear","values":["800 mm","800 mm"]},{"label":"Weight","values":["440 kg","440 kg"]}]},{"name":"Tyre size","rows":[{"label":"Front","values":["","16 × 7.5 – 8"]},{"label":"Rear","values":["","23 × 10.50 – 12"]}]}]}
