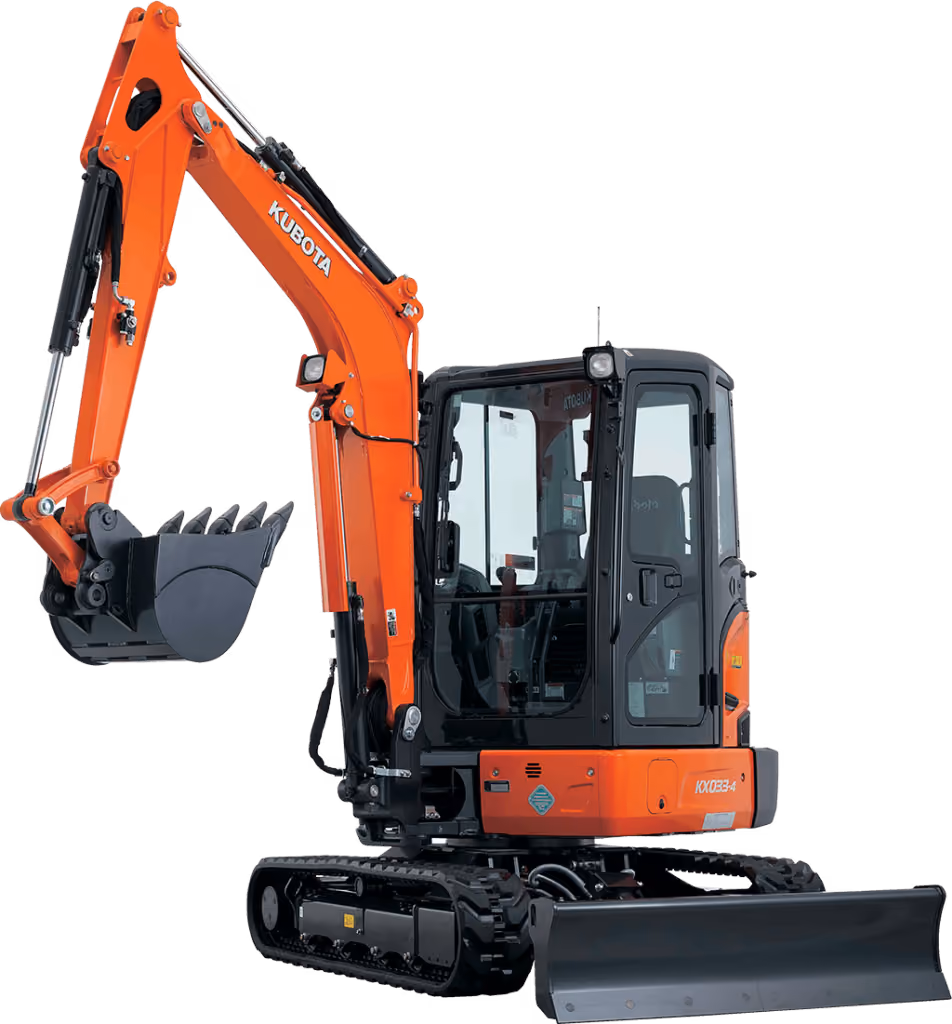

Kubota KX033-4 Compact Excavator

Models

KX033-4

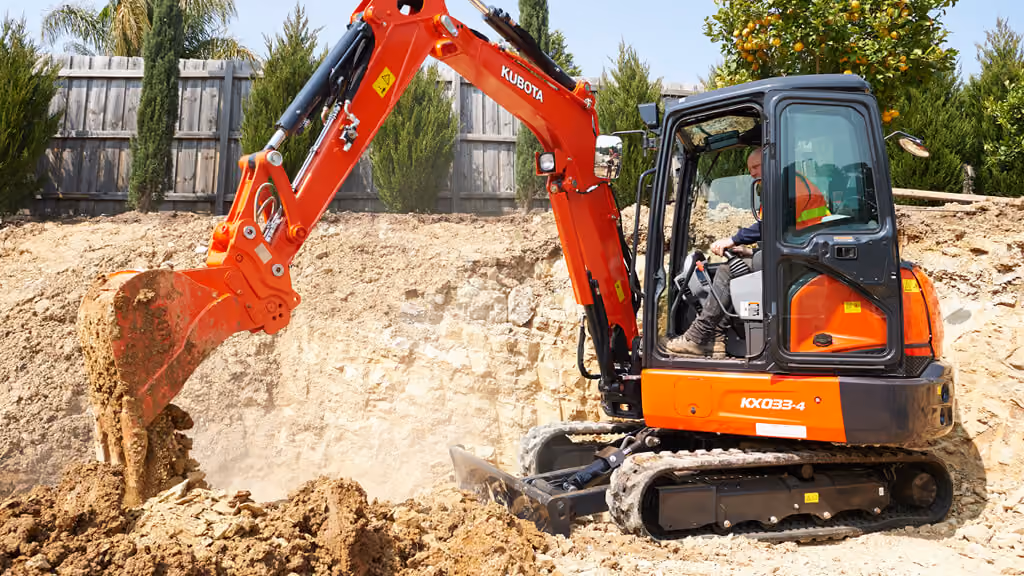

With the stability and lifting capacity of a much bigger machine, the 3-ton class KX033-4 offers a level of performance to efficiently handle a wide variety of tough excavating jobs. An innovative counterbalance ensures superior excavator stability, while the low centre of gravity and double-flanged lower track rollers deliver safe and efficient operation when working to the side with hydraulic attachments or lifting heavy objects.

Related Categories

Construction

Excavators

Documents

Download Brochure KX033-4 Excavator Operator's Manual

No items found.

Features

Engine

Powered by a Kubota 24.8HP Tier 4 engine for reliability and to maximise digging and lifting performance. Easy maintenance as the engine is organised with easy access to primary engine components. Durable steel rear and side panels open easily for quick inspection and routine maintenance to keep machine in peak operating condition. Accumulator helps to change hydraulically driven attachments by clearing residual pressure in the hydraulic lines.

Comfort

With a wider entrance with a spacious operating area for more leg room to enhance comfort for the operator. Enhanced air circulation resulting in a powerful air conditioning and heating system with six vents positioned throughout the cab. New user-friendly digital panel positioned for better visibility and convenience at your fingertips featuring an easy one touch button operation. Suspension seat designed for better fit and operator comfort to minimise fatigue for long hours of work.

Hydraulics

Third line hydraulic return allows oil to flow back to tank without running through the control valves when working with one-way hydraulic attachments. This contributes to less oil contamination and greater oil flow efficiency.

Front Bush Pins

Bushings on all pivot points on the front attachment and connecting points on the swing bracket is one more feature that adds to the enviable durability of this machine.

Stability

An innovative counterbalance ensures superior excavator stability, while the low centre of gravity and double-flanged lower track rollers deliver safe and efficient operation when working to the side with hydraulic attachments or lifting heavy objects.

Auto Idling System

When KX033-4 control levers are in neutral for more than 4 seconds, engine RPM automatically idles. Move any control lever, and engine RPM immediately returns. This innovative feature not only lowers noise and exhaust emissions, but also reduces operating cost and fuel consumption. It can be turned on and off.

Breakout Force

Powerful bucket digging force (3694kg) with a well balanced arm and bucket to allow for faster, deeper (3210mm) and efficient dig in the toughest of conditions. When heavily loaded, the KX033-4’s outstanding bucket breakout force lets you handle even the toughest excavating jobs with speed and efficiency.

Key Specifications

{"version":1,"models":[{"code":"KX033-4"}],"sections":[{"name":"Engine","rows":[{"label":"Engine Type","values":["Interim Tier 4 Emission Level"]},{"label":"Fuel Type","values":["Diesel"]},{"label":"Cylinders","values":["3"]},{"label":"Engine Model","values":["Kubota D1703M"]},{"label":"Engine Net","values":["23.9 HP"]},{"label":"Engine Gross","values":["24.8 HP"]},{"label":"Displacement","values":["1647 cc"]},{"label":"Rated Speed","values":["2200 rpm"]}]},{"name":"Drive System","rows":[{"label":"Max. Traction Force","values":["2763 kgf"]},{"label":"Tumbler Distance","values":["1665 mm"]},{"label":"Crawler Length","values":["2100 mm"]},{"label":"Shoe Width","values":["300 mm"]},{"label":"Ground Contact Pressure - Canopy (Per cm2)","values":["0.307 kgf"]},{"label":"Ground Contact Pressure - Cab (Per cm2)","values":["0.321 kgf"]}]},{"name":"Hydraulics","rows":[{"label":"Hydraulic Pump Capacity","values":["39.6 variable x 2 / 20.9 Gear x 1 l/min"]},{"label":"Aux Hydraulic Flow - AUX1","values":["60 l/min"]},{"label":"Max. Breakout Force - Bucket","values":["3694 kgf"]},{"label":"Max. Breakout Force - Arm","values":["1756 kgf"]}]},{"name":"Swing System","rows":[{"label":"Swing System","values":["Conventional Swing"]},{"label":"Unit Swing Speed","values":["8.9 rpm"]},{"label":"Boom Swing Angle Left","values":["70 degree"]},{"label":"Boom Swing Angle Right","values":["48 degree"]}]},{"name":"Travelling Speeds","rows":[{"label":"Low","values":["3 km/h"]},{"label":"High","values":["4.6 km/h"]}]},{"name":"Dimensions","rows":[{"label":"Length","values":["4730 mm"]},{"label":"Width","values":["1550 mm"]},{"label":"Height - Canopy","values":["2480 mm"]},{"label":"Height - Cab","values":["2470 mm"]},{"label":"Min. Ground Clearance","values":["290 mm"]},{"label":"Operating Weight - Canopy","values":["3365 kg"]},{"label":"Operating Weight - Cab","values":["3511 kg"]}]},{"name":"Blade","rows":[{"label":"Max. Blade Width","values":["1550 mm"]},{"label":"Blade Height","values":["345 mm"]},{"label":"Max. Lift Above Ground","values":["365 mm"]},{"label":"Max. Drop Below Ground","values":["375 mm"]}]},{"name":"Fluid Capacity","rows":[{"label":"Fuel Reservoir","values":["46.9 l"]},{"label":"Hydraulic Oil Reservoir","values":["44.6 l"]},{"label":"Hydraulic Oil System","values":["61 l"]},{"label":"Engine Oil","values":["5.3 l"]}]},{"name":"Safety Equipment","rows":[{"label":"Operator Station","values":["Canopy"]}]},{"name":"Working Range","rows":[{"label":"Max. Digging Height","values":["4980 mm"]},{"label":"Max. Dumping Height","values":["3530 mm"]},{"label":"Max. Digging Depth","values":["3210 mm"]},{"label":"Max. Vertical Digging Depth","values":["2235 mm"]},{"label":"Max. Digging Radius At Ground","values":["5120 mm"]},{"label":"Max. Digging Radius","values":["5230 mm"]},{"label":"Min. Turning Radius - w/o Swing","values":["2020 mm"]},{"label":"Min. Turning Radius - Swing","values":["1510 mm"]},{"label":"Min. Tail Turning Radius","values":["1250 mm"]}]}]}
