Landscape Rake LR16 Series

Models

LR1660, LR1672, LR1684, LR1696

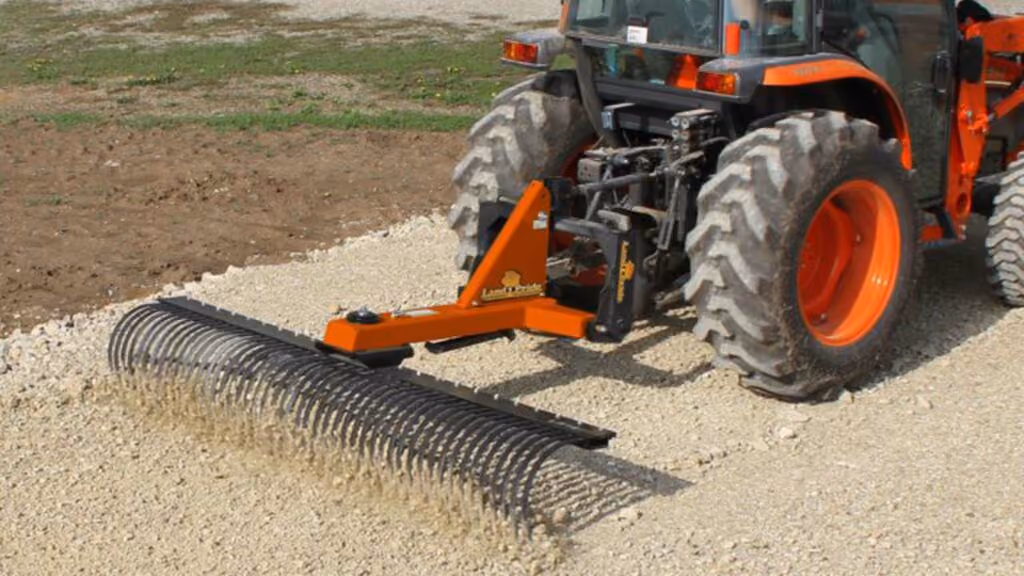

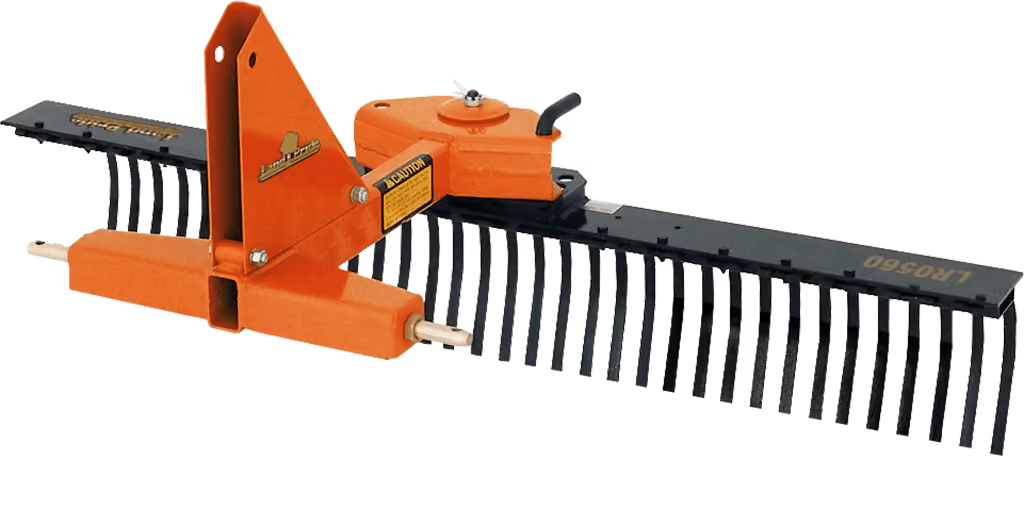

The LR1660, LR1672, LR1684 and LR1696 Landscape Rakes from Land Pride perform final soil surface preparation and reshaping soil and/or aggregate profile and offer angling capabilities to meet specific finishing needs. Optional gauge wheel packages are also available to enable a more consistent finish over uneven or undulating terrain. The LR16 offers a flip-down grader to expedite material distribution and contouring tasks. These Land Pride Landscape Rakes are perfectly suited for use by landscapers, contractors, and rental yards and have applications at housing and road construction projects, golf courses, terracing sites, run-off control projects, and reclamation and reforestation sites. *S/N 872034+ is compatible with QH05.

Related Categories

Documents

Download Brochure LR16 Landscape Rake Operator's Manual

No items found.

Features

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

TEETH

High carbon spring steel teeth have “memory” to spring back to shape and are sized to eliminate premature bending and tooth breakage.

EASY TOOTH REPLACEMENT

Teeth alignment secured by channel frame design allows easy single tooth replacement.

HEAVY FRAME PLATE

Heavy frame plate adds durability.

OPTIONAL GAUGE WHEELS

Optional gauge wheels provide ease of depth control.

OPTIONAL HYDRAULIC ANGLING KIT

Allows the operator to change rake angle from the tractor seat.

REAR BLADE ATTACHMENT

The rake assembly can be removed from the main frame and a Rear Blade attached to give the Land Pride Rake versatility

Key Specifications

{"version":1,"models":[{"code":"LR1660"},{"code":"LR1672"},{"code":"LR1684"},{"code":"LR1696"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["20 hp","20 hp","20 hp","20 hp"]},{"label":"Max. Horsepower","values":["40 hp","40 hp","40 hp","40 hp"]},{"label":"Max. Angle","values":["45°","45°","45°","45°"]},{"label":"Max. Offset","values":["N/A","N/A","N/A","N/A"]},{"label":"No. of Teeth","values":["30","36","42","48"]},{"label":"Tooth Spacing – Centres","values":["50 mm","50 mm","50 mm","50 mm"]},{"label":"Tooth Material","values":["High Carbon Spring Steel","High Carbon Spring Steel","High Carbon Spring Steel","High Carbon Spring Steel"]},{"label":"Tooth Thickness","values":["8 mm","8 mm","8 mm","8 mm"]},{"label":"Tooth Width","values":["25 mm","25 mm","25 mm","25 mm"]},{"label":"Rake Height","values":["419 mm","419 mm","419 mm","419 mm"]}]},{"name":"Hitch","rows":[{"label":"Cat. I","values":["Yes","Yes","Yes","Yes"]},{"label":"Cat. II","values":["No","No","No","No"]},{"label":"Quick Hitch Compatible","values":["Yes","Yes","Yes","Yes"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["152 cm","183 cm","213 cm","244 cm"]},{"label":"Weight","values":["109 kg","122 kg","132 kg","143 kg"]}]}]}
