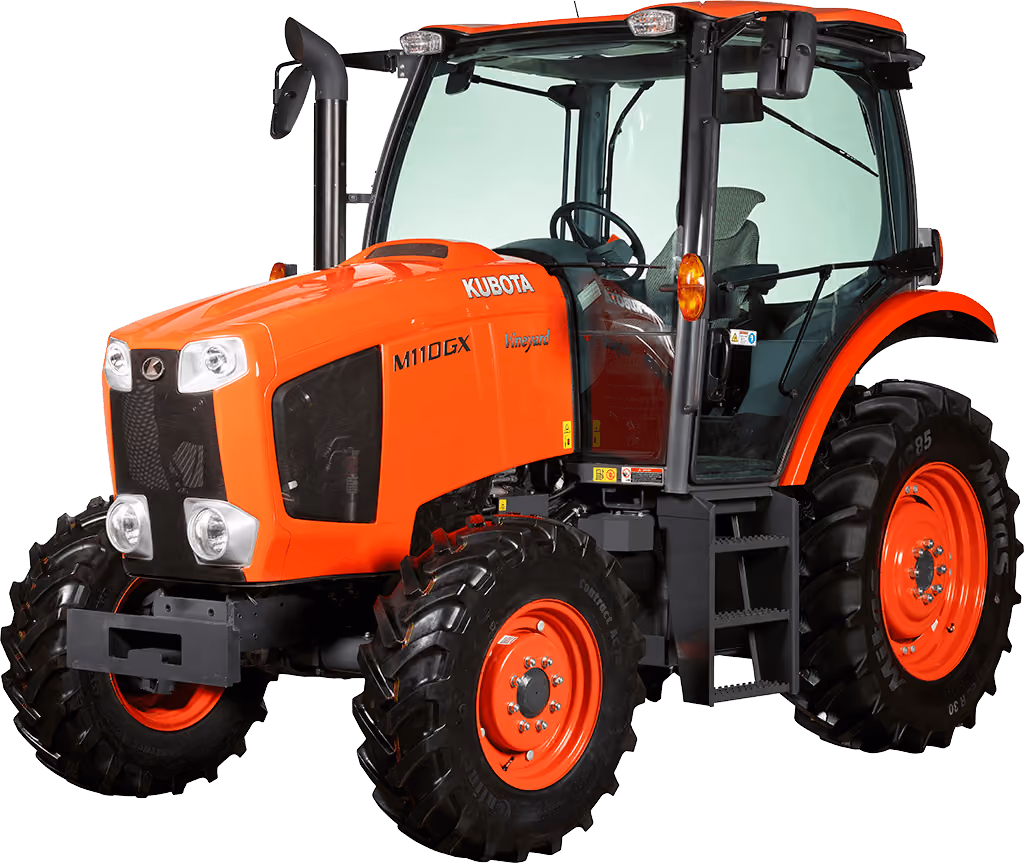

M100/M110GX

Models

M100GX, M110GX

The new generation MGX Series range delivers class leading power and reliability while reducing environmental impact. With one of the largest cabs in its class, the premium MGX range offers unmatched operator comfort and visibility. Built for maximum power and torque output with intelligent technology, the MGX Series is equipped to efficiently handle the most demanding jobs in the field or around the farm.

Related Categories

Agriculture

Tractors

Documents

Download Brochure

No items found.

Features

Engine

Kubota engine technology is designed to maximise performance and leave a light environmental footprint. The Common Rail System (CRS) electronically controls the fuel injection timing and amount in stages rather than all at once for optimal combustion. The results are great efficiency, better fuel economy and less engine noise. Its combination with the Exhaust Gas Recirculation (EGR) and Diesel Particulate Filter (DPF) Muffler reduces harmful emissions to make the Grand X Series Interim Tier IV-compliant. The V3800 for the M100GX and M110GX delivers an ample 100HP and 110HP respectively. And with maximum torque at low rpms, you can get the job done quicker and more efficiently. These engines also feature a powerful Waste Gate System turbocharger, for tremendous pulling and recovery power.

Transmission

For maximum versatility, the 24F/24R Intelli-Shift transmission features an 8-speed powershift with a 3-speed, hi/mid/low range for 24 gears in forward and reverse. A convenient single lever operates both the powershift and range shift. Upshift and downshift are also at the touch of a button. A sophisticated microprocessor enables smooth, fatigue-free powershifting, and generous gear overlap means less changing of gears during operation.

Grand X Cabin

The Kubota Grand X cabin does justice to its name. Every inch is designed with operator comfort and ergonomics in mind. Nothing is out of place, every component is easy to identify and within reach. Invite a passenger into the cabin and share the experience. Visibility is paramount for a safe and efficient working environment. The Grand X cabin offers an unsurpassed field of view from every angle; and the roof panel allows improved sight of a raised front end loader.

Hydraulics & PTO

Linkage, hydraulics and PTO are designed for serious farming. With up to 5000 kg of lift capacity, hydraulic valves with adjustable flow and a 2 speed PTO the MGX models are true all-rounders. For smooth implement handling and extra speed of front loader and rear implement operations, Grand X tractors come equipped with gear-type hydraulic pumps. An external hydraulic cylinder on the rear linkage improves lifting force and eases maintenance, two standard remote valves and an option to add additional two valves enhance the hydraulic capabilities of the MGX.

Specialist Application

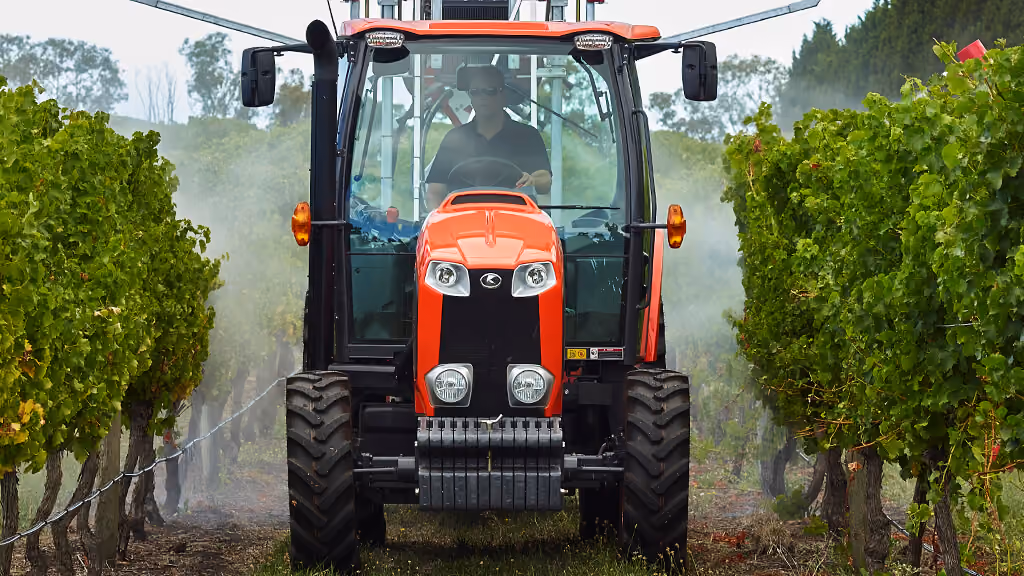

An optional vineyard kit converts the MGX to a narrower width of around 1800mm to suit orchard and vineyard operations that look for a higher hp tractor with added operator comfort to perform multiple specialist tasks.

Key Specifications

{"version":1,"models":[{"code":"M100GX"},{"code":"M110GX"}],"sections":[{"name":"Engine","rows":[{"label":"Fuel Type","values":["Diesel","Diesel"]},{"label":"Engine Model","values":["Kubota V3800","Kubota V3800"]},{"label":"Engine Gross","values":["100 hp","109.5 hp"]},{"label":"PTO","values":["86 hp","96 hp"]},{"label":"Displacement","values":["3769 cc","3769 cc"]},{"label":"Fuel Tank Capacity","values":["190 l","190 l"]},{"label":"Rated Speed","values":["2600 rpm","2600 rpm"]},{"label":"Cylinders","values":["","4"]}]},{"name":"Drive Train","rows":[{"label":"Transmission","values":["Powershift","Powershift"]},{"label":"Ranges","values":["3 Range","3 Range"]},{"label":"Gears","values":["24F","24F"]},{"label":"Drive Method","values":["4WD","4WD"]},{"label":"Brakes","values":["Wet Disc","Wet Disc"]},{"label":"PTO 540","values":["1000 rpm","1000 rpm"]}]},{"name":"Hydraulics","rows":[{"label":"Hydraulic Pump Output","values":["70.9 l/min","70.9 l/min"]},{"label":"3-Point Hitch","values":["Category II","Category II"]},{"label":"Rear Linkage Lift Capacity","values":["5000 kg","5000 kg"]},{"label":"Steering","values":["Hydraulic Power Steering","Hydraulic Power Steering"]}]},{"name":"Tyre Options","rows":[{"label":"AG","values":["Yes","Yes"]},{"label":"Industrial","values":["No","No"]},{"label":"Turf","values":["No","No"]}]},{"name":"Travelling Speeds","rows":[{"label":"Minimum Low Speed","values":["0.19 km/h","0.19 km/h"]},{"label":"Maximum High Speed","values":["38.6 km/h","38.6 km/h"]}]},{"name":"Dimensions","rows":[{"label":"Length","values":["4230 mm","4230 mm"]},{"label":"Width","values":["2100 mm","2100 mm"]},{"label":"Height","values":["2790 mm","2840 mm"]},{"label":"Wheelbase","values":["2435 mm","2435 mm"]},{"label":"Ground Clearance","values":["560 mm","590 mm"]},{"label":"Turning Radius","values":["4 m","4 m"]},{"label":"Tractor Weight","values":["4095 kg","4180 kg"]}]}]}
