M108 tractor

Models

M108DC

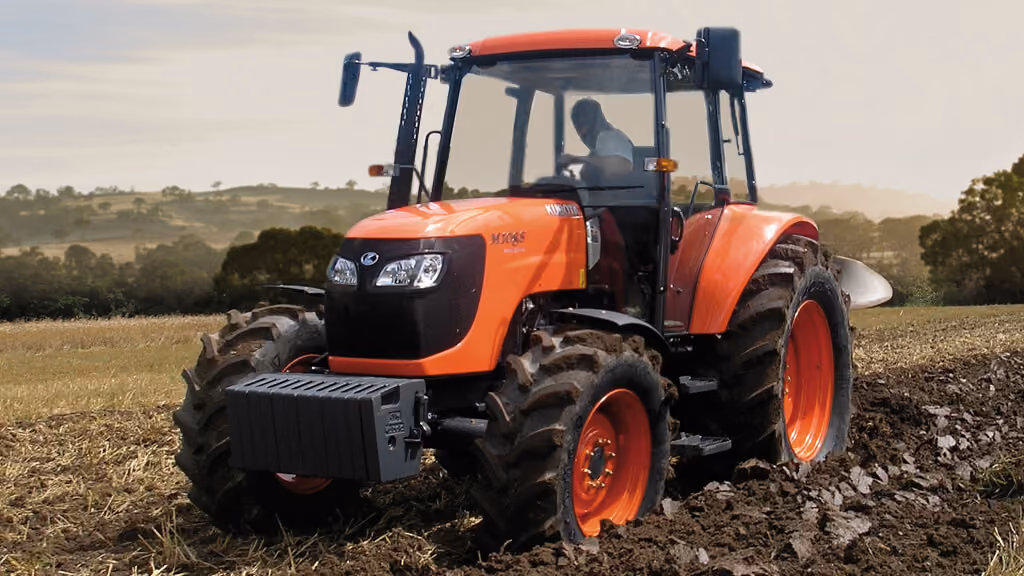

Ideal for hay and cattle operations, the Kubota M108DC mid-sized tractor boasts a powerful PTO and increased loader capacity for even greater productivity. Features a powerful Kubota V3800, 105HP, 4 cylinder, turbo charged and inter-cooled engine that produces significantly less emissions while offering high torque and incredible pulling power. For taking on tough tasks, whether arable farming, working on a dairy farm, or any job in a mixed farming setting, the Kubota M108DC is second to none.

Related Categories

Agriculture

Tractors

Documents

Download Brochure M108 Tractor Operator's Manual

No items found.

Features

Engine

The V3800DI-T engine powers the M108DC tractor, equipped with Kubota’s revolutionary center-direct injection system (E-CDIS) . The E-CDIS engines offer a unique combination of more power, durability and better fuel efficiency, so you’ll be able to get the job done quicker and more efficiently while minding your budget. These engines also boast lower noise levels, which equates to less stress and fatigue after long work days. This hearty diesel engine employs a reliable 4-valve, center-direct injection system to achieve greater towing power. Combine this with the V3800DI-T’s turbo charger and you have all the power you’ll ever need, especially in the low rpm range, to perform heavy-duty tasks and during operations requiring sure-footed traction.

Transmission

The M108 offers 16 forward and reverse gears from 2 ranges and 4 gears with electronic hi/lo shift and optional additional 8 creeper speeds. A power shuttle makes changes in direction a breeze. With a modulating valve, a steering column-mounted, finger operated shuttle lever makes it possible to shift smoothly and easily from forward to reverse, without using a clutch or stopping the tractor, e.g. for more comfortable and productive front-loader operation.

Ultra Grand Cab

The M108DC cabin comfort starts with its contoured, air suspension seat, and a powerful air conditioner. It offers low noise and vibration levels, improved visibility, and an uncluttered, full-flat deck with hanging pedals. The cabin is wide and offers tall operators a comfortable work environment. Reclining, weight-adjusted seats come standard, designed to absorb shock and significantly reduce operator fatigue. Instrument panel makes viewing the vital functions of the tractor clear and easy. The LCD readout displays travel speed, PTO revolution and hour meter information digitally.

Hydraulics & PTO

The open centre hydraulic system provides 65 litres/min dedicated to remotes and linkage, and a further 48.9 l/min for power steering and lubrication. Two remote valves are standard equipment and a further valve can be added as an option. Flow control is also available. The category 2 linkage is rated up to 3900 kg, together with the optional lift assist cylinder. The rear PTO is independent and hydraulically engaged. With two shiftable speeds of 540/540E and optional 540/1000 rpm kit, plus the freedom to smoothly switch the rear PTO on and off, even while the tractor is in motion, this must-have feature greatly enhances all demanding tasks with PTO implements.

Key Specifications

{"version":1,"models":[{"code":"M108DC"}],"sections":[{"name":"Engine","rows":[{"label":"Type","values":["Direct injection, liquid-cooled"]},{"label":"Cylinders","values":["4"]},{"label":"Engine Model","values":["Kubota V3800"]},{"label":"Engine Gross","values":["105 hp"]},{"label":"PTO","values":["96 hp"]},{"label":"Displacement","values":["3769 cc"]},{"label":"Fuel Tank Capacity","values":["175 l"]},{"label":"Rated Speed","values":["2600 rpm"]}]},{"name":"Drive train","rows":[{"label":"Transmission","values":["Synchronized 4 Gears - 2 Ranges & electrohydraulic swing shift splitter - 16F/16R - optional with creep 24F/24R"]},{"label":"Drive Method","values":["4WD"]},{"label":"Brakes","values":["Hydraulic wet discs"]},{"label":"PTO","values":["Hydraulic independent PTO with PTO brake, wet discs"]},{"label":"PTO - Rear","values":["540 / 1000 rpm"]}]},{"name":"Hydraulics","rows":[{"label":"Hydraulic Pump Output","values":["65 l/min"]},{"label":"3-Point Hitch","values":["Category II"]},{"label":"Rear Linkage Lift Capacity","values":["3900 kg"]},{"label":"Steering","values":["Hydraulic power steering"]}]},{"name":"Tyre size","rows":[{"label":"Front - Ag & Vineyard","values":["340/85R24 / 320/85R24 / 320/85R20 / 320/85R24"]},{"label":"Rear - Ag & Vineyard","values":["480/70R34 / 420/85R34 / 380/85R30 / 340/85R38"]}]},{"name":"Travelling speeds at rated engine rpm","rows":[{"label":"Forward","values":["0.38 - 37.26 km/h"]},{"label":"Reverse","values":["0.38 - 37.58 km/h"]}]},{"name":"Dimensions","rows":[{"label":"Length","values":["4070 mm"]},{"label":"Width","values":["2010 mm"]},{"label":"Height","values":["2680 mm"]},{"label":"Wheelbase","values":["2435 mm"]},{"label":"Ground Clearance","values":["435 mm"]},{"label":"Tread Front","values":["1390-1690 mm"]},{"label":"Tread Rear","values":["1730-2035 mm"]},{"label":"Turning Radius","values":["4.7 m"]},{"label":"Tractor Weight","values":["3510 kg"]}]}]}
