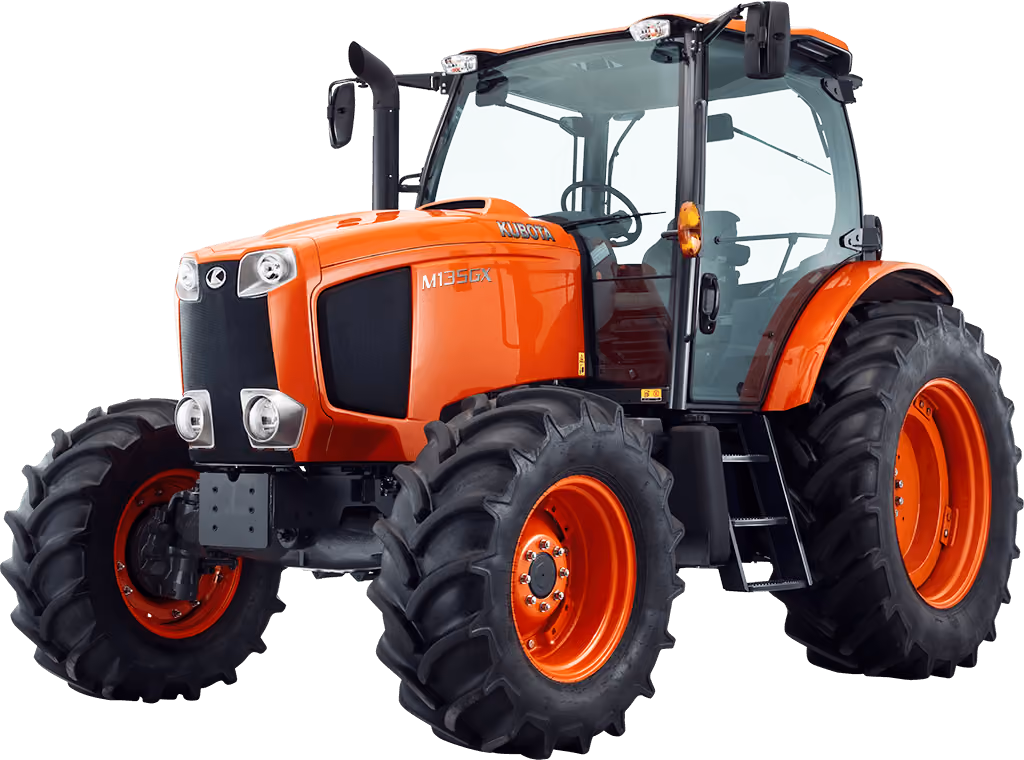

M126/M135GX

Models

M126GX, M135GX, M135GXS

The new generation MGX Series range delivers class leading power and reliability while reducing environmental impact. With one of the largest cabs in its class, the premium MGX range offers unmatched operator comfort and visibility. Built for maximum power and torque output with intelligent technology, the MGX series is equipped to efficiently handle the most demanding jobs in the field or farm.

Related Categories

Agriculture

Tractors

Documents

Download Brochure

No items found.

Features

Engine

Kubota engine technology is designed to maximise performance and leave a light environmental footprint. The Common Rail System (CRS) electronically controls the fuel injection timing and amount in stages rather than all at once for optimal combustion. The results are great efficiency, better fuel economy and less engine noise. Its combination with the Exhaust Gas Recirculation (EGR) and Diesel Particulate Filter (DPF) Muffler reduces harmful emissions to make the Grand X Series Interim Tier IV-compliant. The V6108, 6.1l four cylinder engine for the M126GX and M135GX delivers an ample 125HP and 135HP respectively. And with maximum torque at low rpms, you can get the job done quicker and more efficiently. These engines also feature a powerful Waste Gate System turbocharger, for tremendous pulling and recovery power.

Transmission

For maximum versatility, the 24F/24R Intelli-Shift transmission features an 8-speed powershift with a 3-speed, hi/mid/low range for 24 gears in forward and reverse. A convenient single lever operates both the powershift and range shift. Upshift and downshift are also at the touch of a button. A sophisticated microprocessor enables smooth, fatigue-free powershifting, and generous gear overlap means less changing of gears during operation.

Grand X Cabin

The Kubota Grand X cabin does justice to its name. Every inch is designed with operator comfort and ergonomics in mind. Nothing is out of place, every component is easy to identify and within reach. Invite a passenger into the cabin and share the experience. Visibility is paramount for a safe and efficient working environment. The Grand X cabin offers an unsurpassed field of view from every angle; and the roof panel allows improved sight of a raised front end loader.

Hydraulics

Linkage, hydraulics and PTO are designed for serious farming. With up to 6100 kg of lift capacity, hydraulic valves with adjustable flow and a 2 speed PTO the MGX models are true all-rounders. For smooth implement handling and extra speed of front loader and rear implement operations, Grand X tractors come equipped with gear-type hydraulic pumps. An external hydraulic cylinder on the rear linkage improves lifting force and eases maintenance, two standard remote valves and an option to add additional two valves enhance the hydraulic capabilities of the MGX.

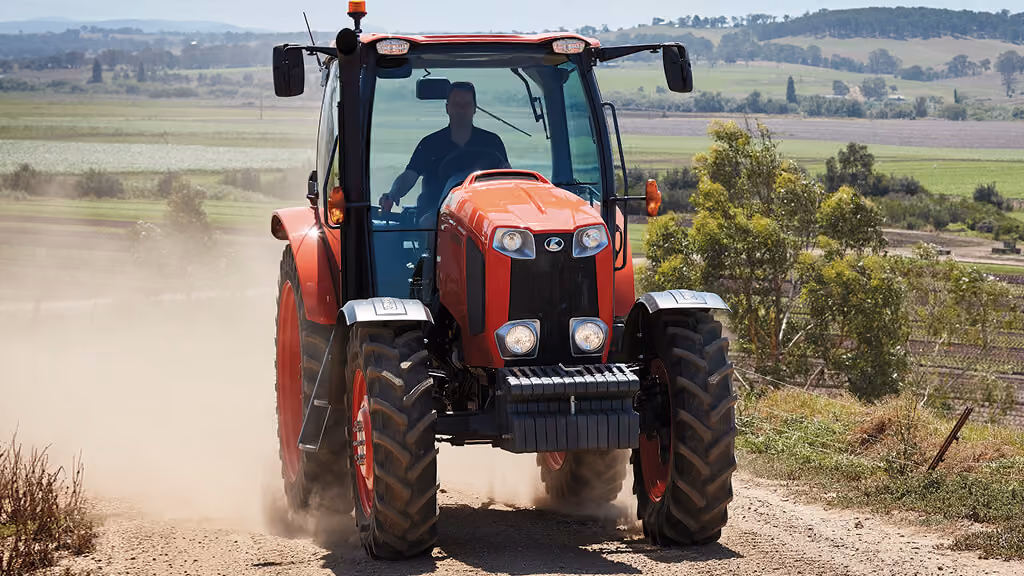

M135GXS Front Suspension

Available with optional front suspension system.

Key Specifications

{"version":1,"models":[{"code":"M126GX"},{"code":"M135GX"},{"code":"M135GXS"}],"sections":[{"name":"Engine","rows":[{"label":"Fuel Type","values":["Diesel","Diesel","Diesel"]},{"label":"Cylinders","values":["4","4","4"]},{"label":"Engine Model","values":["Kubota V6108","Kubota V6108","Kubota V6108"]},{"label":"Engine Gross","values":["125 hp","135 hp","135 hp"]},{"label":"PTO","values":["108 hp","118 hp","118 hp"]},{"label":"Displacement","values":["6124 cc","6124 cc","6124 cc"]},{"label":"Fuel Tank Capacity","values":["190 l","190 l","190 l"]},{"label":"Rated Speed","values":["2200 rpm","2200 rpm","2200 rpm"]}]},{"name":"Drive Train","rows":[{"label":"Transmission","values":["Powershift","Powershift","Powershift"]},{"label":"Ranges","values":["3 Range","3 Range","3 Range"]},{"label":"Gears","values":["24F","24F","24F"]},{"label":"Drive Method","values":["4WD","4WD","4WD"]},{"label":"Brakes","values":["Wet Disc","Wet Disc","Wet Disc"]},{"label":"PTO 540","values":["1000 rpm","1000 rpm","1000 rpm"]}]},{"name":"Hydraulics","rows":[{"label":"Hydraulic Pump Output","values":["77.2 l/min","77.2 l/min","77.2 l/min"]},{"label":"3-Point Hitch","values":["Category II","Category II","Category II"]},{"label":"Rear Linkage Lift Capacity","values":["6100 kg","6100 kg","6100 kg"]},{"label":"Steering","values":["Hydraulic Power Steering","Hydraulic Power Steering","Hydraulic Power Steering"]}]},{"name":"Tyre Options","rows":[{"label":"AG","values":["Yes","Yes","Yes"]},{"label":"Industrial","values":["No","No","No"]},{"label":"Turf","values":["No","No","No"]}]},{"name":"Travelling Speeds","rows":[{"label":"Minimum Low Speed","values":["0.2 km/h","0.74 km/h","0.2 km/h"]},{"label":"Maximum High Speed","values":["39.2 km/h","39.2 km/h","39.2 km/h"]}]},{"name":"Dimensions","rows":[{"label":"Length","values":["4360 mm","4400 mm","4360 mm"]},{"label":"Width","values":["2180 mm","2130 mm","2180 mm"]},{"label":"Height","values":["2885 mm","2885 mm","2875 mm"]},{"label":"Wheelbase","values":["2690 mm","2690 mm","2680 mm"]},{"label":"Ground Clearance","values":["615 mm","615 mm","615 mm"]},{"label":"Turning Radius","values":["4.1 m","4.1 m","4.1 m"]},{"label":"Tractor Weight","values":["4705 kg","4705 kg","4905 kg"]}]}]}
