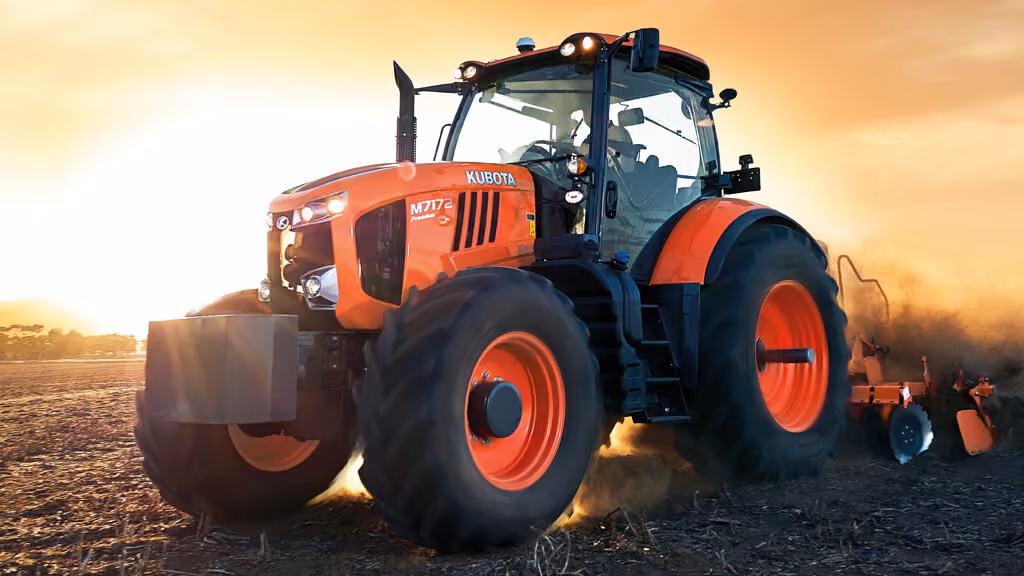

M7-2 Premium

Models

M7-132 Premium, M7-152 Premium, M7-172 Premium

The M7-2 Series is Kubota’s flagship. Available in three models, the Kubota M7-2 Premium range features Kubota’s 130–170HP Tier 4 engine, plus proven and versatile transmissions in all models. Specifically designed for the farming professional who wants a versatile and hard-working tractor. The M7 series keeps evolving to make your job more productive and enjoyable. Since its launch to the market, the Kubota M7 series has contributed to making farm work more productive and comfortable. It’s hard to beat your best, but that’s what Kubota just did. Carefully listening to feedback from Australia and New Zealand, we have proudly introduced an improved M7 that brings even greater productivity and operability to the field. Power is the key to superior tractor performance and the M7-2 has plenty of power to quickly and efficiently handle just about any task. But when PTO jobs, or transport, call for more power, the M7-2’s power boost is activated, delivering more power to get you through the tough jobs.

Related Categories

Agriculture

Tractors

Documents

Download Brochure

No items found.

Features

Engine

The M7-2 Series includes Kubota's most powerful engine. Offering improved engine performance by lowering the rated engine speed from 2200 rpm to 2100 rpm and lowering the output speed from 2200 rpm to 1900 rpm. Kubota's updated engine results in better fuel economy and reduced engine noise. The M7-2 Series provides constant power and torque used for PTO and towing work.

30 Speed Semi-Powershift Transmission

Kubota's M7-2 Series has a new semi-powershift transmission which provides an even greater range of forward gears. 30 gears in total lets you find the right gear for each job, for maximum productivity. An auto shifting function automatically evaluates the engine load which adjusts the engine output accordingly depending on the appropriate range gear. Kubota's semi-powershift transmission also offers 24/12 creeper gears to cater for horticultural style work such as driving a rotary hoe.

Ultimate Comfort

Kubota's M7-2 Series ensure long days in the field provide ultimate comfort throughout your ride. With a spacious four post suspended cab and reduced decibel labels, you can enjoy the virtually unobstructed views. Designed with your comfort in mind, the M7-2 Series include a new deluxe seat with more cushioning and armrest, with a wider range of adjustments. Kubota's M7-2 Series pressurised cab features a high-performance heating, air conditioning system and ventilation with 25% greater air flow. This allows the cabin to quickly heat or cool, plus maintain the desired temperature.

Hydraulics

Tractors must be able to handle virtually every agricultural job on the farm. Closed Centre Load Sensing (CCLS) hydraulic system with 110 l/min flow, 4 standard rear remotes (optional 5) and power beyond to accomplish the most demanding jobs. Premium models offer an electric hydraulic system that provides enhanced operational efficiency and the ability to multitask. Valve adjustments such as flow, timer, priority are done through the intuitive K-Monitor Pro console. The rear linkage boasts 9400kg lifting power at ball ends, plenty of muscle to safely handle large implements.

Key Specifications

{"version":1,"models":[{"code":"M7-132 Premium"},{"code":"M7-152 Premium"},{"code":"M7-172 Premium"}],"sections":[{"name":"Engine","rows":[{"label":"Engine Type","values":["Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine","Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine","Direct Injection, with Intercooler turbocharger, water-cooled 4 cycle diesel engine"]},{"label":"Engine Model","values":["Kubota V6108","Kubota V6108","Kubota V6108"]},{"label":"Engine Gross","values":["128 hp","148 hp","168 hp"]},{"label":"PTO","values":["102 hp","122 hp","142 hp"]},{"label":"Displacement","values":["6124 cc","6124 cc","6124 cc"]},{"label":"Fuel tank capacity","values":["330 l","330 l","330 l"]},{"label":"Rated speed","values":["1900 rpm","2100 rpm","1900 rpm"]}]},{"name":"Drive train","rows":[{"label":"Transmission","values":["Semi-Powershift w/creep, Electro-Hydraulic 6 Gears x 5 Ranges, 30F / 15R, w/creep 54F / 27R","Semi-Powershift w/creep, Electro-Hydraulic 6 Gears x 5 Ranges, 30F / 15R, w/creep 54F / 27R","Semi-Powershift w/creep, Electro-Hydraulic 6 Gears x 5 Ranges, 30F / 15R, w/creep 54F / 27R"]},{"label":"Drive method","values":["4WD","4WD","4WD"]},{"label":"Brakes","values":["Wet Disc Brakes with 4WD braking, hydraulic trailer brakes","Wet Disc Brakes with 4WD braking, hydraulic trailer brakes","Wet Disc Brakes with 4WD braking, hydraulic trailer brakes"]},{"label":"PTO","values":["Live-independent PTO, hydraulical operated wet clutch, w/ PTO brake","Live-independent PTO, hydraulical operated wet clutch, w/ PTO brake","Live-independent PTO, hydraulical operated wet clutch, w/ PTO brake"]},{"label":"PTO - Rear","values":["540 / 1000 / 540E / 1000E rpm","540 / 1000 / 540E / 1000E rpm","540 / 1000 / 540E / 1000E rpm"]}]},{"name":"Hydraulics","rows":[{"label":"Hydraulic Pump Output","values":["110 l/min","110 l/min","110 l/min"]},{"label":"3-point hitch","values":["Telescopic lower link, Category III","Telescopic lower link, Category III","Telescopic lower link, Category III"]},{"label":"Rear Linkage Lift Capacity","values":["9400 kg","9400 kg","9400 kg"]},{"label":"Steering","values":["Hydraulic Power Steering","Hydraulic Power Steering","Hydraulic Power Steering"]}]},{"name":"Tyre size","rows":[{"label":"Front","values":["540/65R28","540/65R28","540/65R28"]},{"label":"Rear","values":["650/65R38","650/65R38","650/65R38"]}]},{"name":"Travelling speeds at rated engine rpm","rows":[{"label":"Forward","values":["0.37-50 km/h","0.37-50 km/h","0.37-50 km/h"]},{"label":"Reverse","values":["0.4-27 km/h","0.4-27 km/h","0.4-27 km/h"]}]},{"name":"Dimensions","rows":[{"label":"Length","values":["4770 mm","4770 mm","4770 mm"]},{"label":"Width","values":["2825 mm","2825 mm","2825 mm"]},{"label":"Height","values":["3030 mm","3030 mm","3030 mm"]},{"label":"Wheelbase","values":["2720 mm","2720 mm","2720 mm"]},{"label":"Ground clearance","values":["370 – 410 mm","370 – 410 mm","370 – 410 mm"]},{"label":"Tread Front","values":["1537-2237 mm","1537-2237 mm","1537-2237 mm"]},{"label":"Tread Rear","values":["1582-2086 mm","1582-2086 mm","1582-2086 mm"]},{"label":"Turning radius (w/o brake)","values":["6.35 m","6.35 m","6.35 m"]},{"label":"Tractor Weight","values":["6730 kg","6730 kg","6730 kg"]}]}]}
