Overseeder OS15 Series

Models

OS1548, OS1572

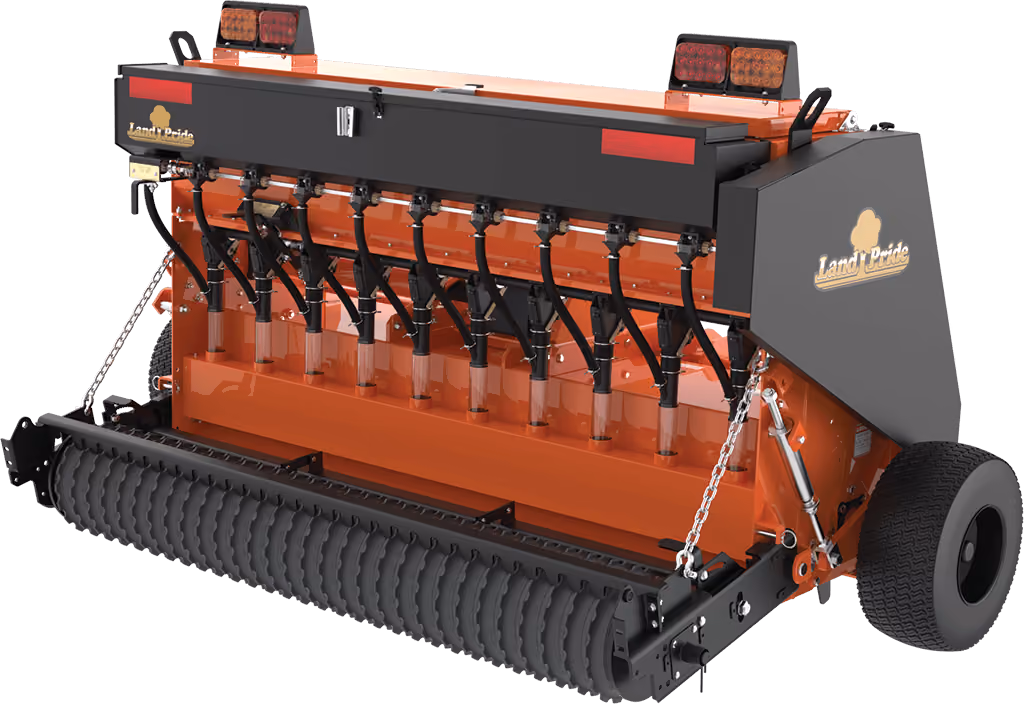

Land Pride's OS1548 & OS1572 Solid Stand Overseeders offer precise placement and seed-to-soil contact, making them ideal for over-seeding existing stands of grass or establishing new turf. The three way seed-to-soil contact system provides great germination and emergence with the solid advantages of a full-width seeding pattern. Your choice of straight or curved knives slice into the ground creating slits to receive the seed. Fluted seed cups precisely meter the desired amount of seed in a broadcast pattern, delivering outstanding metering accuracy. The solid, cast-iron packer wheels finish the job by pressing and firmly packing the seed into the soil, eliminating most air pockets. Choose from gauge-wheel drive or plant close to sidewalks and obstacles with the rear-roller drive.

Related Categories

Documents

Download Brochure

No items found.

Features

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

FLUTED SEED CUPS

"Precision" seeding is accomplished using proven fluted metering cups. Each flute grabs just the right amount of seed for even distribution.

GEARBOX WARRANTY

5 Year Limited Gearbox Warranty demonstrates our confidence in the gearbox's quality and lasting performance.

SOLID CAST IRON PACKER WHEELS

The solid, cast-iron packer wheels finish the job by pressing and firmly packing the seed into the soil, eliminating most air pockets.

OPTIONAL SMALL SEEDS BOX

Allows two seeds to be metered at one time into the same seed tube for even distribution.

Key Specifications

{"version":1,"models":[{"code":"OS1548"},{"code":"OS1572"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["25 hp","30 hp"]},{"label":"Max. Horsepower","values":["60 hp","60 hp"]},{"label":"Rotor - Diameter","values":["457 mm","457 mm"]},{"label":"Productivity @ 5.6km/h (Broadcast)","values":["0.6 ha/h","0.8 ha/h"]},{"label":"Max. Working Depth","values":["38 mm","38 mm"]},{"label":"Gearbox","values":["540 rpm","540 rpm"]},{"label":"Rear Roller Diameter","values":["12\" (305mm)","12\" (305mm)"]},{"label":"Driveline","values":["Cat III Slip Clutch","Cat III Slip Clutch"]},{"label":"Transport Lights","values":["Standard","Standard"]}]},{"name":"Seedbox","rows":[{"label":"Seedbox – Paddle Agitator","values":["141 L","211 L"]},{"label":"Small Seedbox Capacity","values":["33.5 L","47.9 L"]},{"label":"Number of Seed Cups","values":["7","10"]},{"label":"Seed Cups Drive","values":["Rear Roller","Rear Roller"]}]},{"name":"Hitch","rows":[{"label":"Cat. I","values":["Yes","Yes"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["129 cm","183 cm"]},{"label":"Overall Width w/ Gauge Wheels","values":["197 cm","251 cm"]},{"label":"Overall Width w/ Rear Roller Drive","values":["153 cm","206 cm"]},{"label":"Overall Length","values":["133 cm","133 cm"]},{"label":"Empty Weight – 5.1cm Spacing Wheel Drive","values":["585 kg","746 kg"]},{"label":"Empty Weight – 5.1cm Spacing Roller Drive","values":["567 kg","728 kg"]},{"label":"Empty Weight – 736cm Spacing Roller Drive","values":["553 kg","710 kg"]}]},{"name":"Knives","rows":[{"label":"Knife Type","values":["Curved","Curved"]},{"label":"Knives Per Flange","values":["5","5"]},{"label":"Knife Tip Speed","values":["10.2 m/s","10.2 m/s"]},{"label":"Knife Max. Depth","values":["38 mm","38 mm"]},{"label":"Knife Spacing","values":["2\" (51mm)","2\" (51mm)"]},{"label":"Knife Thickness","values":["4 mm","4 mm"]}]}]}
