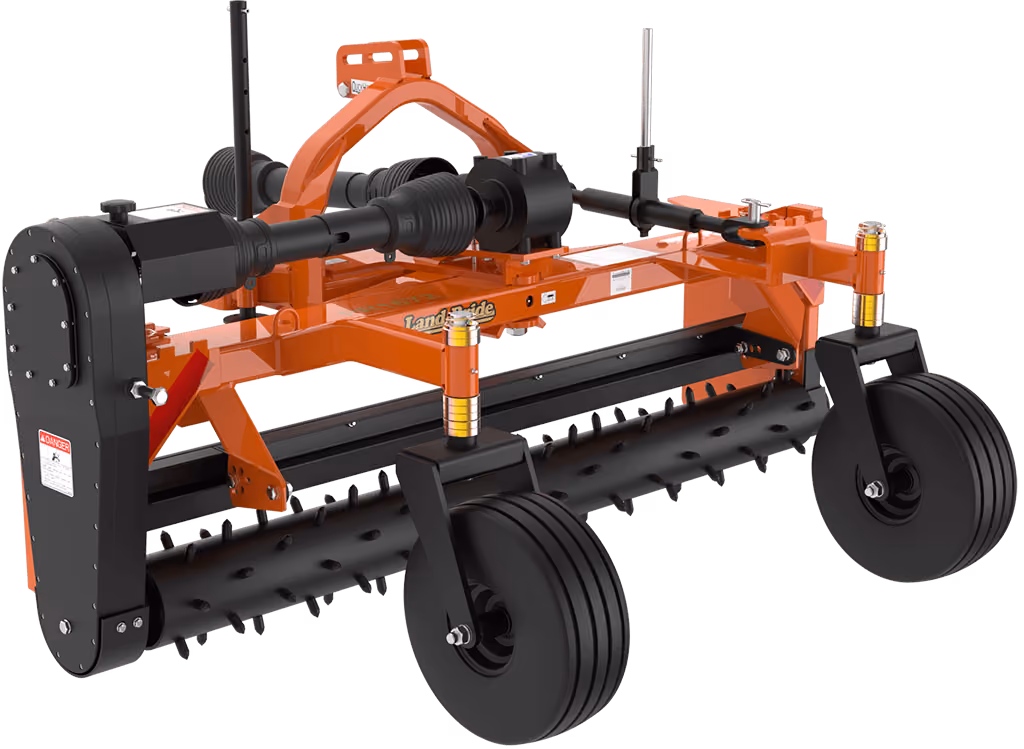

Powered Rakes PR16 Series

Models

PR1660, PR1672, PR1690

Land Pride’s PR16 Series Powered Rake is a multi-functional seed bed and soil surface preparation tool for landscapers and turf care professionals, capable of grading, leveling, shaping, cultivating, renovating, and pulverizing various types of soil surfaces. They are also capable of raking or windrowing soil, rocks, and construction site debris. The 60" or 72" working widths are a good choice for smaller landscaping and turf renovation jobs, while the 90" model is perfect for larger commercial jobs.

Related Categories

Documents

Download Brochure Features & Benefits

No items found.

Features

Gauge Wheels

Wide gauge wheels adjust vertically to set working depth. Sealant helps seal against punctures.

Chain Guard

Cast iron chain guard housing protects chain in harsh conditions.

Replaceable studs

Carbide tipped studs are very tough and can be replaced individually as necessary.

Key Specifications

{"version":1,"models":[{"code":"PR1660"},{"code":"PR1672"},{"code":"PR1690"}],"sections":[{"name":"Specifications","rows":[{"label":"Horsepower","values":["25-60 hp","25-60 hp","35-75 hp"]},{"label":"Gearbox","values":["540 rpm","540 rpm","540 rpm"]},{"label":"Gearbox oil capacity","values":["0.71 l","0.71 l","0.71 l"]},{"label":"Gearbox lubrication type","values":["Add gear lube until it escapes from lower plug hole","Add gear lube until it escapes from lower plug hole","Add gear lube until it escapes from lower plug hole"]},{"label":"Primary driveline","values":["Cat. 3 Heavy-Duty","Cat. 3 Heavy-Duty","Cat. 3 Heavy-Duty"]},{"label":"Secondary driveline","values":["Cat. 3 with Slip-Clutch","Cat. 3 with Slip-Clutch","Cat. 3 with Slip-Clutch"]},{"label":"Roller end bearings","values":["Ball Bearings","Ball Bearings","Ball Bearings"]},{"label":"Drive chain","values":["#50 double roller chain","#50 double roller chain","#50 double roller chain"]},{"label":"Angle adjustment (left or right - hydraulic or manual)","values":["15 °","15 °","15 °"]},{"label":"Side plates","values":["Standard, removable with storage rack","Standard, removable with storage rack","Standard, removable with storage rack"]},{"label":"Skid shoes","values":["replaceable","replaceable","replaceable"]},{"label":"Chaincase lubrication type","values":["Shell Gadus S2 V2200 00 flowable grease or equivalent","Shell Gadus S2 V2200 00 flowable grease or equivalent","Shell Gadus S2 V2200 00 flowable grease or equivalent"]},{"label":"Chaincase Lubrication capacity","values":["1.18 l","1.18 l","1.18 l"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["152 cm","183 cm","229 cm"]},{"label":"Weight","values":["444.5 kg","453.6 kg","521.6 kg"]},{"label":"Material control deflector","values":["13x127 mm","13x127 mm","13x127 mm"]},{"label":"Spiked roller diameter","values":["238 mm","238 mm","238 mm"]},{"label":"Spiked roller carbide tipped studs","values":["19x38 mm","19x38 mm","19x38 mm"]},{"label":"Angle cylinder","values":["2x8 inch","2x8 inch","2x8 inch"]},{"label":"Gauge wheels/Depth control","values":["13x6.5 inch","16.5x6.5 inch","16.5x6.5 inch"]}]},{"name":"Hitch","rows":[{"label":"Hitch","values":["Cat I","Cat I","Cat I"]},{"label":"Quick Hitch","values":["Fits Land Pride Q15/QH16 Cat I Quick Hitch","Fits Land Pride Q15/QH16 Cat I Quick Hitch","Fits Land Pride Q15/QH16 Cat I Quick Hitch"]}]}]}
