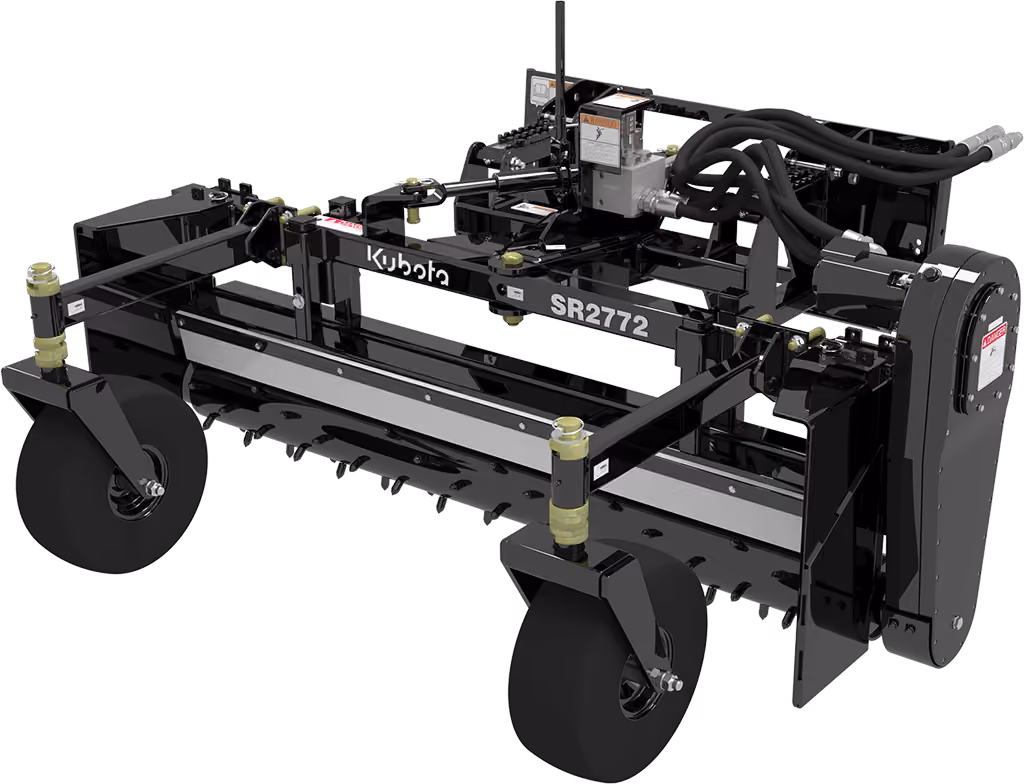

Powered Rakes SR27 Series
Models
SR2790, SRF2790, SR2772, SRF2772
Landscapers and housing contractors can prep and level ground for seeding, remove unwanted material and debris, and rejuvenate gravel driveways and lots. Powered rakes make excellent rental tools. The SR2772 & SR2790 offers a rigid or float option.
Related Categories
Documents
No items found.
Features
Angle/float hitch:
When operated in float, it allows the gauge wheels and rake to float with the contour of the ground.
Bi-directional roller
Carbide tipped studs and bi-directional roller with variable speed enables more complete finish and control.
Key Specifications
{"version":1,"models":[{"code":"SR2790"},{"code":"SRF2790"},{"code":"SR2772"},{"code":"SRF2772"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Hydraulic Flow","values":["57 L/min","57 L/min","45 L/min","45 L/min"]},{"label":"Max. Hydraulic Flow","values":["91 L/min","91 L/min","91 L/min","91 L/min"]},{"label":"Min. Hydraulic Pressure","values":["2250 psi","2250 psi","2250 psi","2250 psi"]},{"label":"Max. Hydraulic Pressure","values":["3500 psi","3500 psi","3500 psi","3500 psi"]},{"label":"Non-Angled Working Width","values":["2.29 m","2.29 m","1.83 m","1.83 m"]},{"label":"Weight","values":["508 kg","'500 kg","456 kg","393 kg"]},{"label":"Direction of Travel","values":["Bi-Directional","Bi-Directional","Bi-Directional","Bi-Directional"]},{"label":"Drive Chain","values":["#50 Double","#50 Double","#50 Double","#50 Double"]},{"label":"Side Plates","values":["Removable","Removable","Removable","Removable"]},{"label":"Skid Shoes","values":["Replaceable","Replaceable","Replaceable","Replaceable"]}]},{"name":"Roller","rows":[{"label":"Spike Roller - Diameter","values":["23.8 cm","23.8 cm","23.8 cm","23.8 cm"]},{"label":"Spike Roller - Carbide Tipped Studs Diameter","values":["1.9 cm","1.9 cm","1.9 cm","1.9 cm"]},{"label":"Spike Roller - Carbide Tipped Studs Length","values":["3.8 cm","3.8 cm","3.8 cm","3.8 cm"]},{"label":"Min. Roller Speed - Variable","values":["200 rpm","200 rpm","200 rpm","200 rpm"]},{"label":"Max. Roller Speed - Variable","values":["350 rpm","350 rpm","350 rpm","350 rpm"]}]},{"name":"Options","rows":[{"label":"Fixed Hitch","values":["N/A","Standard","N/A","Standard"]},{"label":"Angle/Float Hitch","values":["Standard","N/A","Standard","N/A"]},{"label":"Max. Angle","values":["20°","N/A","20°","N/A"]},{"label":"Angle Actuator","values":["Hydraulic","N/A","Hydraulic","N/A"]}]}]}
