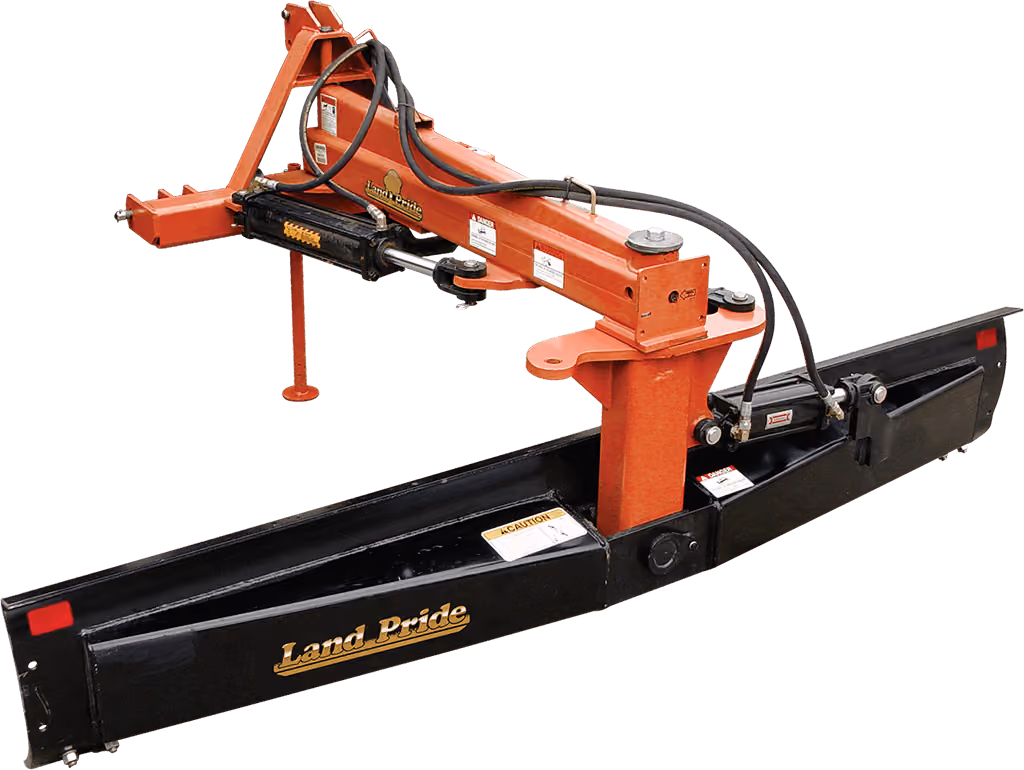

Rear Grader Blade RBT Series

Models

RBT3584, RBT3596, RBT4596, RBT45108

Land Pride's RBT35 & RBT45 Series Hydraulic Rear Blades are an excellent choice for leveling, finish grading, and backfilling applications at large feedlots, outdoor arenas, construction sites, nurseries, and maintenance operations on farms, ranches, or homeowner lanes or roadways. They are excellent for snow removal in the pulling or the push-blade mode. Their hydraulic or manual angle, offset, and tilt capability make them ideal for construction and maintenance of drainage ditches, waterways, and soil contours. They are also very effective in maintaining silage pit operations.

Related Categories

Documents

Download Brochure Features & Benefits RBT35 & RBT45

No items found.

Features

Fits Quick Hitch

Add in a Land Pride Quick Hitch to quickly and easily attach without leaving the tractor seat.

Reversible cutting edge

Get twice the wear from the cutting edge by flipping it over.

Fully welded main frame

Fully welded adds overall strength and rigidity to blade frame.

Blade offsets left and right up to 30”

Allows the operator to position the end of the moldboard beyond tractor tire and close to solid obstacles such as fences, buildings and abutments.
- 9 positions manually: Center, 4 positions left and 4 positions right
- Hydraulically: Any position up to 30”

Blade tilts up and down up to 20o

Allows the operator to do simple tasks such as putting a crown in the middle of a road to making V-type ditches of various sizes.

Key Specifications

{"version":1,"models":[{"code":"RBT3584"},{"code":"RBT3596"},{"code":"RBT4596"},{"code":"RBT45108"}],"sections":[{"name":"Specifications","rows":[{"label":"Max. Horsepower - 2WD","values":["80 hp","80 hp","125 hp","125 hp"]},{"label":"Max. Horsepower - 4WD","values":["65 hp","65 hp","125 hp","125 hp"]},{"label":"Max. Angle Manual","values":["40°","40°","45°","45°"]},{"label":"Max. Angle Hydraulic","values":["50°","50°","45°","45°"]},{"label":"Blade Tilt Up","values":["20°","20°","15°","15°"]},{"label":"Blade Tilt Down","values":["20°","20°","15°","15°"]},{"label":"Tilt Cylinder Bore","values":["51 mm","51 mm","76 mm","76 mm"]},{"label":"Max. Offset","values":["76 cm","76 cm","89 cm","89 cm"]},{"label":"Offset Cylinder Bore","values":["89 mm","89 mm","102 mm","102 mm"]}]},{"name":"Moldboard","rows":[{"label":"Moldboard Height","values":["432 mm","432 mm","483 mm","483 mm"]},{"label":"Moldboard Thickness","values":["8 mm","8 mm","8 mm","8 mm"]},{"label":"Cutting Edge Width","values":["152 mm","152 mm","152 mm","152 mm"]},{"label":"Cutting Edge Thickness","values":["13 mm","13 mm","13 mm","13 mm"]}]},{"name":"Hitch","rows":[{"label":"Cat. I","values":["Yes","Yes","No","No"]},{"label":"Cat. II","values":["Yes","Yes","Yes","Yes"]},{"label":"Cat. III","values":["No","No","Yes","Yes"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["213 cm","244 cm","244 cm","274 cm"]},{"label":"Weight","values":["322 kg","338 kg","513 kg","529 kg"]}]}]}
