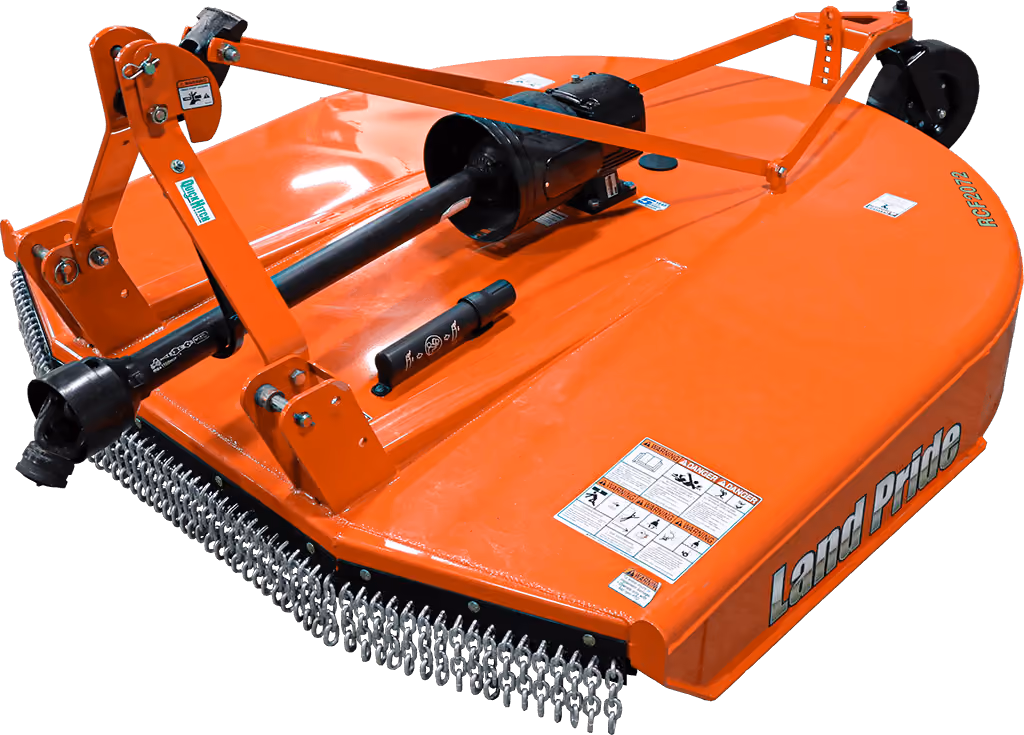

Rotary Cutter RCF20 Series

Models

RCF2060, RCF2072, RCF2084

The RCF20 Series features a smooth top for easier cleaning and a floating top link for following ground undulations in grass, weeds, and light brush up to 2" in diameter. The RCF20 is ideal for rural acreage or farm grass maintenance. These cutters have a Category 1 3-Point hitch that are Quick Hitch adaptable. The standard ASAE Category 3 driveline comes with slip-clutch protection and the tailwheel is a hard wearing laminated material.

Related Categories

Documents

Download Brochure

No items found.

Features

QUICK-HITCH COMPATIBLE

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

GEARBOX WARRANTY

5 Year Limited Gearbox Warranty demonstrates our confidence in the gearbox's quality and lasting performance.

FLOATING TOP LINK

Provides for easy hook-up. Permits deck to follow the terrain for an even cut. Two hole position to allow greater lift leverage for smaller tractors.

10 GAUGE STUMP JUMPER

Standard round stump jumper slides over stumps, rocks, and debris.

Driveline slip clutch

CAT 3 driveline with 2 plate slip clutch

Tailwheel as standard

A 4" x 16" solid laminated tailwheel ensures consistent cut height on undulating ground. The tailwheel support also reduces load on the tractor and prevents unnecessary wear on skid shoes. The tailwheel pivots on a heavy 1 1/4" (32mm) spindle for smooth operation when turning.

Key Specifications

{"version":1,"models":[{"code":"RCF2060"},{"code":"RCF2072"},{"code":"RCF2084"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["20 hp","20 hp","45 hp"]},{"label":"Max. Horsepower","values":["65 hp","65 hp","90 hp"]},{"label":"Safety Guards, Front & Rear","values":["Chains","Chains","Chains"]},{"label":"Gearbox Rating","values":["65 hp","65 hp","130 hp"]},{"label":"PTO Speed","values":["540 rpm","540 rpm","540 rpm"]}]},{"name":"Hitch","rows":[{"label":"Cat. I","values":["Yes","Yes","Yes"]},{"label":"Quick Hitch Ready","values":["Yes","Yes","Yes"]},{"label":"Cat. II","values":["","","Yes"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["152 cm","183 cm","210 cm"]},{"label":"Overall Width","values":["165 cm","196 cm","226 cm"]},{"label":"Overall Length","values":["249 cm","278 cm","320 cm"]},{"label":"Min. Cutting Height","values":["38 mm","38 mm","38 mm"]},{"label":"Max. Cutting Height","values":["305 mm","305 mm","305 mm"]},{"label":"Cutting Capacity - Diameter","values":["50 mm","50 mm","50 mm"]},{"label":"Deck Thickness","values":["3.4 mm","3.4 mm","3.4 mm"]},{"label":"Deck Height","values":["246 mm","279 mm","279 mm"]},{"label":"Weight","values":["281 kg","338 kg","524 kg"]},{"label":"Dishpan","values":["Yes","Yes","Yes"]}]},{"name":"Blades","rows":[{"label":"Blade Length","values":["75 mm","75 mm","102 mm"]},{"label":"Blade Width","values":["13 mm","13 mm","13 mm"]},{"label":"Blade Tip Speed","values":["83.1 mps","76 mps","87 mps"]}]}]}
