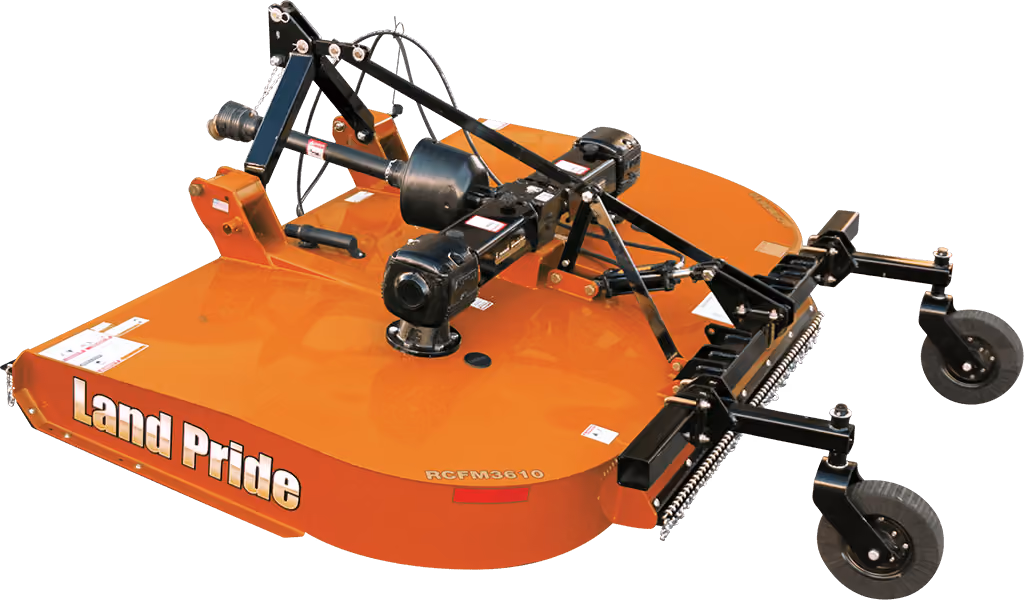

Rotary Cutter RCF36 Series

Models

RCF3672, RCF3684, RCF3696, RCF3610

The RCF36 Series is the most durable and heavy duty rigid frame rotary cutter offered by Land Pride. Perfect for intensive users and contractors, the RCF36 series will stand up to the toughest conditions while maintaining a quality finish and uniform cut. Four sizes are available ranging from 6ft (1.8m) to 10ft (3m). The 6ft (1.8m) and 7ft (2.1m) models are single spindle machines with a 190hp gearbox rating. The 8ft (2.4m) and 10ft (3m) models are dual spindle machines with 210hp rated gearboxes. The Land Pride RCF36 Series will excel in many tasks including mowing heavy grass and weeds, row crop stubble, thick brush, and small trees. Cut capacity is 4"(102mm) on the single spindle models and 3" (76mm) on the dual spindle models. The RCF36 has a smooth top design and offers a 2" to 12" cutting height range. Front and rear chain safety guards are included on all models.

Related Categories

Documents

Download Brochure

No items found.

Features

QUICK-HITCH COMPATIBLE WITH FLOATING TOP LINK

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement. This is a real time saver when working on multiple projects. The floating top link allows the cutter to follow undulating ground while maintaining cut height

GEARBOX WARRANTY

5 Year Limited Gearbox Warranty demonstrates our confidence in the gearbox's quality and lasting performance.

Heavy Duty Tailwheel

A 4" (102mm) x 15" (381mm) tailwheel mounted on a heavy duty a 1/2" (38mm) spindle ensures consistent cut height especially on undulating ground. The tailwheel also reduces weight on the tractor and prevents excessive wear on the cutters skid shoes. Dual Tailwheels are available as an option on most models.

Fully Welded Deck

The RCF36 series has a fully welded deck for additional strength and durability. The fully welded design allows this cutter to be exceptionally durable without being too heavy. The RCF3672 & RCF3684 deck is manufactured from 3/16" (4.8m) steel while the RCF3696 & RCF3610 is 10 gauge (3.2mm) material. The side skirts are made from 1/4" (6.4mm) thick steel. Box tube supports engineered into the cutter body add further strength.

Key Specifications

{"version":1,"models":[{"code":"RCF3672"},{"code":"RCF3684"},{"code":"RCF3696"},{"code":"RCF3610"}],"sections":[{"name":"Specifications","rows":[{"label":"Min. Horsepower","values":["60 hp","70 hp","50 hp","60 hp"]},{"label":"Max. Horsepower","values":["190 hp","190 hp","130 hp","130 hp"]},{"label":"Gearbox Rating","values":["190 hp","190 hp","210 hp","210 hp"]},{"label":"PTO Speed","values":["540 rpm","540 rpm","540 rpm","540 rpm"]}]},{"name":"Hitch","rows":[{"label":"Cat. I","values":["Yes","No","Yes","No"]},{"label":"Cat. II","values":["Yes","Yes","Yes","Yes"]},{"label":"Cat. III","values":["No","Yes","No","Yes"]},{"label":"Quick Hitch Ready","values":["Yes","Yes","No","No"]}]},{"name":"Dimensions","rows":[{"label":"Working Width","values":["183 cm","213 cm","244 cm","305 cm"]},{"label":"Overall Width","values":["199 cm","230 cm","262 cm","321 cm"]},{"label":"Overall Length","values":["317 cm","330 cm","269 cm","310 cm"]},{"label":"Min. Cutting Height","values":["50 mm","50 mm","50 mm","50 mm"]},{"label":"Max. Cutting Height","values":["300 mm","300 mm","300 mm","300 mm"]},{"label":"Cutting Capacity - Diameter","values":["100 mm","100 mm","75 mm","75 mm"]},{"label":"Deck Thickness","values":["4.76 mm","4.76 mm","3.2 mm","3.2 mm"]},{"label":"Deck Height","values":["340 mm","340 mm","330 mm","330 mm"]},{"label":"Weight","values":["606 kg","907 kg","834 kg","1048 kg"]},{"label":"Dishpan","values":["Yes","Yes","Yes","Yes"]}]},{"name":"Blades","rows":[{"label":"Blade Length","values":["100 mm","100 mm","100 mm","100 mm"]},{"label":"Blade Width","values":["13 mm","13 mm","13 mm","13 mm"]},{"label":"Blade Tip Speed","values":["73 mps","73 mps","86.9 mps","86.9 mps"]},{"label":"Shredder Kit","values":["Optional","Optional","N/A","N/A"]}]}]}
