Rotary Tillers RTR12 Series

Models

RTR1242, RTR1250, RTR1258, RTR1266, RTR1274, RTR1282

The Land Pride RTR12 Series reverse-till Rotary Tillers turn the soil to prepare a seedbed for gardening or lawn seeding. With uses in both rural and non-rural applications like landscaping and gardening, the RTR12 Series offers an economical tilling solution. The RTR12, and all Land Pride reverse rotation tillers, tends to achieve greater depth of penetration, moving and pulverizing more soil in the process, while burying residue as opposed to leaving it on top. Please note, that the Quick-Hitch may require a longer driveline, which is available through Land Pride Parts.

Related Categories

Documents

Download Brochure Features & Benefits

No items found.

Features

Quick Hitch

Our Quick-Hitch System allows you to quickly connect and disconnect from the implement - most without leaving the tractor seat. This is a real time saver when working on multiple projects.

Offset capabilities

Offset capabilities allow the tiller to work closer to objects such as fence lines, buildings, or trees.

Gearbox

The cast iron gearbox offers a 3 Year Limited Gearbox Warranty, which demonstrates our confidence in the gearbox's quality and lasting performance and durability.

Stamped chain case

Land Pride’s proven chain and sprocket drive system are among the most reliable in the industry. To prove it we are offering: Year 1, the warranty covers parts and labor, Years 2 through 10 are parts only.

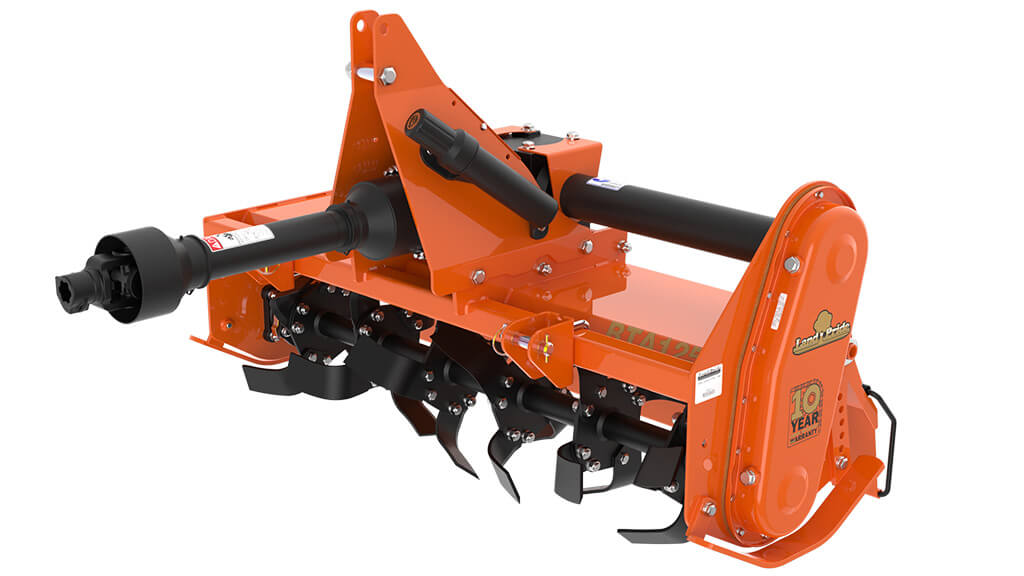

Four tines

There are 4 ‘C’ shaped heat-treated tines per flange, which require less hp to move through the ground compared to conventional times. Four tines requires less horsepower than 6 tines.

Reverse tilling

Reverse action ‘sucks’ the tiller into the ground and doesn't walk on top of hard ground like forward rotation tillers can.

Key Specifications

{"version":1,"models":[{"code":"RTR1242"},{"code":"RTR1250"},{"code":"RTR1258"},{"code":"RTR1266"},{"code":"RTR1274"},{"code":"RTR1282"}],"sections":[{"name":"Specifications","rows":[{"label":"Horsepower","values":["15-40 hp","15-40 hp","20-50 hp","20-50 hp","25-60 hp","30-60 hp"]},{"label":"Weight","values":["183 kg","197 kg","210 kg","224 kg","236 kg","264 kg"]},{"label":"Number of Flanges","values":["5","6","7","8","9","10"]},{"label":"Skid shoe setting","values":["7","7","7","7","7","7"]},{"label":"Rotor shaft speed (at 540rpm PTO)","values":["211 rpm","211 rpm","211 rpm","211 rpm","211 rpm","211 rpm"]},{"label":"PTO driveline category","values":["3","3","3","3","3","3"]},{"label":"PTO driveline protection","values":["Slip clutch","Slip clutch","Slip clutch","Slip clutch","Slip clutch","Slip clutch"]},{"label":"Gearbox rating","values":["60 hp","60 hp","60 hp","60 hp","60 hp","60 hp"]},{"label":"Gearbox speed","values":["540 rpm","540 rpm","540 rpm","540 rpm","540 rpm","540 rpm"]},{"label":"Gearbox design","values":["Cast iron housing/drain plug","Cast iron housing/drain plug","Cast iron housing/drain plug","Cast iron housing/drain plug","Cast iron housing/drain plug","Cast iron housing/drain plug"]},{"label":"Drive chain","values":["#80 high tensile in oil bath","#80 high tensile in oil bath","#80 high tensile in oil bath","#80 high tensile in oil bath","#80 high tensile in oil bath","#80 high tensile in oil bath"]},{"label":"Sprockets","values":["Hardened teeth, splined center","Hardened teeth, splined center","Hardened teeth, splined center","Hardened teeth, splined center","Hardened teeth, splined center","Hardened teeth, splined center"]}]},{"name":"Dimensions","rows":[{"label":"Width (endplate to endplate)","values":["107 cm","127 cm","147 cm","168 cm","188 cm","208 cm"]},{"label":"Overall Width","values":["48-1/4 \"","56-1/4 \"","64-1/4 \"","72-1/4 \"","80-1/4 \"","87-1/4 \""]},{"label":"Rotor swing diameter","values":["15 \"","15 \"","15 \"","15 \"","15 \"","15 \""]},{"label":"Max. tilling depth","values":["6-1/2 \"","6-1/2 \"","6-1/2 \"","6-1/2 \"","6-1/2 \"","6-1/2 \""]}]},{"name":"Hitch","rows":[{"label":"Hitch","values":["Cat.1","Cat.1","Cat.1","Cat.1","Cat.1","Cat.1"]}]},{"name":"Blades","rows":[{"label":"No. of blades per flange","values":["4","4","4","4","4","4"]},{"label":"Blade shape","values":["C-shape","C-shape","C-shape","C-shape","C-shape","C-shape"]},{"label":"Blade spacing","values":["7-7/8 \"","7-7/8 \"","7-7/8 \"","7-7/8 \"","7-7/8 \"","7-7/8 \""]}]}]}
