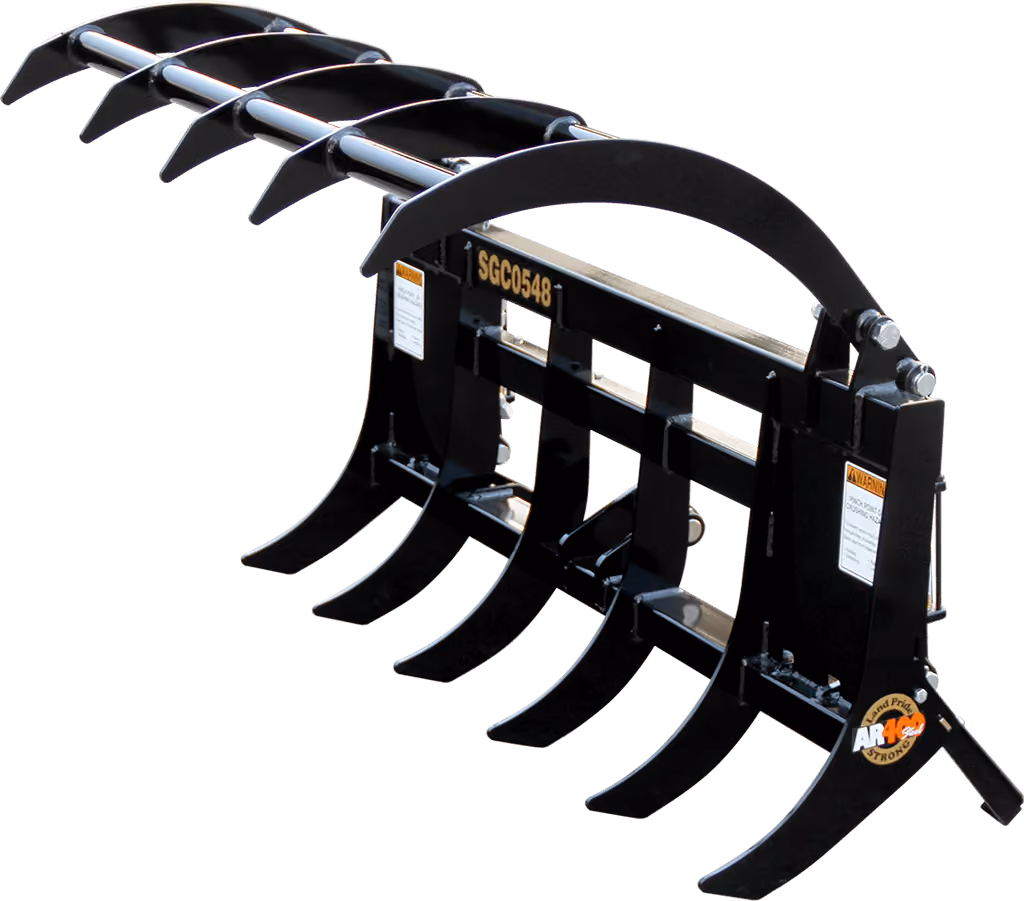

SGC Series Claw Grapples

Models

SGC0548, SGC0660, SGC1060, SGC1072

Easily grasp, lift, and move a variety of materials greatly reducing the time spent on property maintenance with Land Pride's Claw Grapples. The tines are manufactured from high-tensile AR400 steel making it light-weight, yet extremely durable. For additional strength, the frame is made of stout 2" x 3" rectangular tubing. The hinge points feature 3/4" greasable pins. The 9-3/8" tooth spacing and a 32" jaw opening make this attachment a versatile tool to help you get work done. Land Pride also has six 3rd Function Valve Kits for a variety of Kubota tractor/loader combinations. Add versatility to your tractor by completing the package with a 3rd Function Kit.

Related Categories

Documents

Download Brochure SGC0554 Claw Grapple Operator's Manual SGC0660 Claw Grapple Operator's Manual SGC0548 Claw Grapple Operator's Manual

No items found.

Features

PIN-ON HITCH

Kubota BX Quick Hitch System or Pin Direct to Loader Arms

OPTIONAL 3RD FUNCTION VALVE

Can control all grapple and loader movements with a joystick. Provides easy hooking and unhooking of hydraulic hoses at the front of the loader.

ALSO FITS KUBOTA BX TRACTORS

Easy to attach to Kubota’s BX tractor loaders with or without Kubota Original Quick Hitch. A good fit for Kubota BX tractors with front loaders. (*SGC0548 fits 60 and 70 Series BX Quick Hitch and 60, 70 and 80 Series BX direct pin on.)

3/4" PIVOT PINS

Large diameter pins for extra strength.

PARKING STAND

Parking stand allows for easy storage and is standard.

AR400 MATERIAL

Tines are manufactured from high-tensile AR400 steel making it light-weight, yet extremely durable.

Key Specifications

{"version":1,"models":[{"code":"SGC0548"},{"code":"SGC0660"},{"code":"SGC1060"},{"code":"SGC1072"}],"sections":[{"name":"Dimensions","rows":[{"label":"Width","values":["122 cm","157.5 cm","157.5 cm","190.5 cm"]},{"label":"Weight","values":["100 kg","112 kg","161 kg","188 kg"]},{"label":"Closed Height","values":["673 mm","762 mm","838 mm","838 mm"]}]},{"name":"Specifications","rows":[{"label":"Hitch","values":["BX Pin On","Universal Quick-Attach","Universal Quick-Attach","Universal Quick-Attach"]},{"label":"Bottom Teeth","values":["6","7","10","12"]},{"label":"Top Teeth","values":["5","6","9","11"]},{"label":"Tooth Spacing","values":["238 mm","238 mm","152 mm","152 mm"]},{"label":"Inner Teeth Thickness","values":["6 mm","8 mm","9.5 mm","9.5 mm"]},{"label":"Outer Teeth Thickness","values":["6 mm","8 mm","12.7 mm","12.7 mm"]},{"label":"Tooth Working Length","values":["213 mm","229 mm","286 mm","286 mm"]},{"label":"Jaw Opening","values":["762 mm","813 mm","1003 mm","1003 mm"]},{"label":"Tine Material","values":["AR400","AR400","AR400","AR400"]},{"label":"Max. Horsepower","values":["30 hp","40 hp","55 hp","55 hp"]}]}]}
