Track Loader SVL65-2

Models

SVL65-2

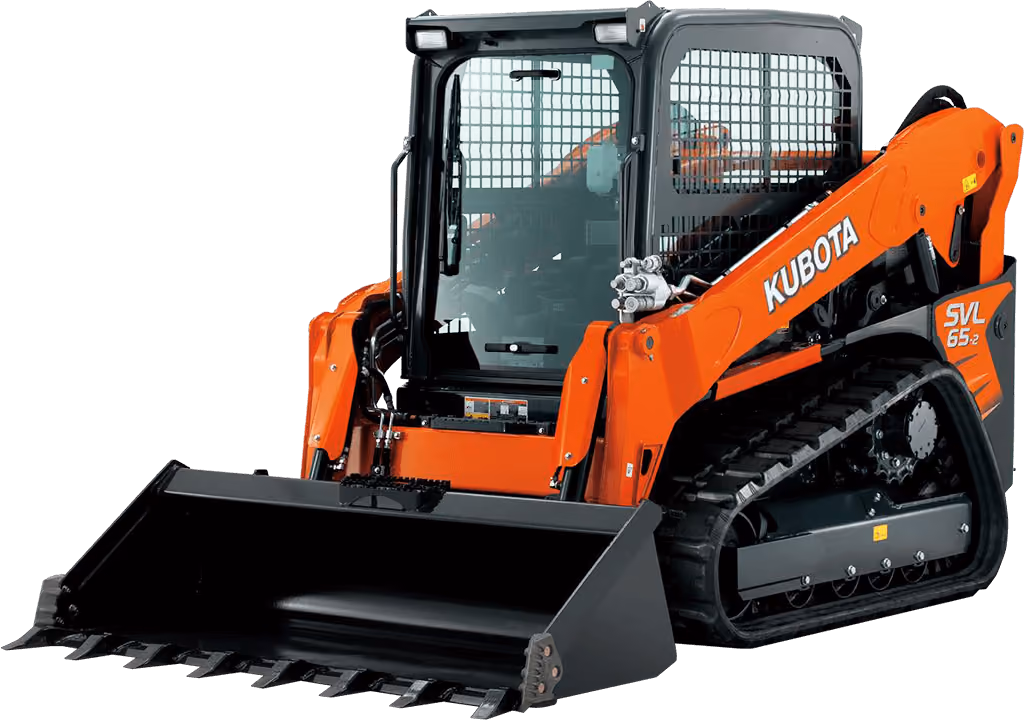

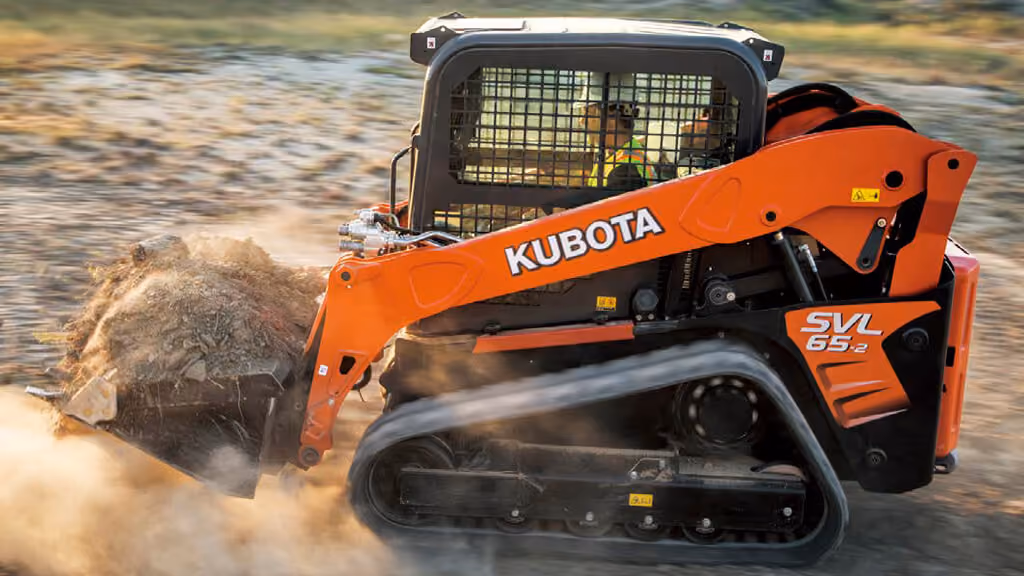

Kubota’s SVL65-2 track loader is compact in size yet boasts incredible power, giving you the all-round performance to take on any task. The SVL65-2 has Advanced Multi-function Valve (AMV) – Hydraulic system features an innovative AMV that provides smooth movements of all hydraulic functions when operated simultaneously.

Related Categories

Construction

Track Loaders

Documents

Download Brochure

No items found.

Features

Engine

Powerful 4 cylinder Turbocharged Kubota engine with 68.4 HP. Displacement 2615cc, Bore x Stroke 87 mm x 110mm.

Comfort

Unique sliding front door, can be opened regardless of the position of the bucket or loader arms.

Optional Multi-function levers to provide fingertip control for attachments (Standard or High-flow model).

Easy to clean floor mat and built in drain hole for those hard to reach places.

The SVL65-2 also boasts a spacious and comfortable cab making any task.

Drive

Standard 2 speed function to shift from 7.8 km/h to 11.5 km/h with a press of a button.

Ground clearance of 233mm let’s you drive over troublesome obstacles with ease.

Traction force of 3813KGF, the original Kubota lug design provides more grip and traction force than ever before.

Dial and foot throttle to control engine speed.

Versatility

AUX flow rate on standard models (65.8L/min) and High Flow models (102.2L/min) capacity for attachments that require a large flow rate.

Electronic travel torque management- ECU system lets you work faster with more power, which constantly monitors the load of the machine to optimally control hyd. pump output, preventing engine stalls for smoother operation.

Durability

Welded and integrated mainframe and undercarriage for maximum durability in the toughest conditions.

Triple flange track roller design improves machine stability and minimises the risk of de-tracking.

Kubota tracks prevent soil accumulation and increase tractor force during long hours of operation.

Maintenance

Tilt up cab ensures easy access to hydraulic pumps, valves, lines and hydraulic tank for operator convenience.

Slide and tilt radiator and oil cooler for easy cleaning and daily routine inspections.

For daily inspection checks simply open the rear bonnet where components are centralised for operator convenience.

Key Specifications

{"version":1,"models":[{"code":"SVL65-2"}],"sections":[{"name":"Engine","rows":[{"label":"Engine Type","values":["Tier 4 Emission Level"]},{"label":"Fuel Type","values":["Diesel"]},{"label":"Cylinders","values":["4"]},{"label":"Engine Model","values":["Kubota V2607-CR-TE4"]},{"label":"Engine Net","values":["59.9 HP"]},{"label":"Engine Gross","values":["68.4 HP"]},{"label":"Displacement","values":["2615 cc"]},{"label":"Rated speed","values":["2600 rpm"]}]},{"name":"Undercarriage","rows":[{"label":"Track Width - Standard","values":["320 mm"]},{"label":"Track Width - Wide","values":["380 mm"]},{"label":"Ground pressure Cab - Standard Track","values":["5 psi"]},{"label":"Ground pressure Cab - Wide Track","values":["4.4 psi"]},{"label":"Track roller (per side)","values":["4"]},{"label":"Track Ground Contact Length","values":["1470 mm"]},{"label":"Traction Force","values":["3813 kgf"]},{"label":"Min. Ground Clearance","values":["233 mm"]}]},{"name":"Hydraulics","rows":[{"label":"Aux Hydraulic Flow - Standard","values":["65.8 l/min"]},{"label":"Aux Hydraulic Flow - High","values":["102.2 l/min"]},{"label":"Loader Hydraulic Pressure (Per cm2)","values":["229.4 kgf"]}]},{"name":"Loader Performance","rows":[{"label":"ROC - 35% Tipping Load","values":["953 kg"]},{"label":"Tipping Load","values":["2722 kg"]},{"label":"Breakout Force - Bucket","values":["2093 kg"]},{"label":"Breakout Force - Lift Arm","values":["1935 kg"]},{"label":"Lift Arm Path","values":["Vertical"]}]},{"name":"Travelling Speeds","rows":[{"label":"Low","values":["7.8 km/h"]},{"label":"High","values":["11.5 km/h"]}]},{"name":"Dimensions","rows":[{"label":"Length","values":["2725 mm"]},{"label":"Width - Standard Track","values":["1657 mm"]},{"label":"Width - Wide Track","values":["1717 mm"]},{"label":"Height","values":["2029 mm"]},{"label":"Operating Weight - Cab","values":["3915 kg"]}]},{"name":"Fluid Capacity","rows":[{"label":"Fuel Reservoir","values":["82 l"]},{"label":"Hydraulic System","values":["50 l"]},{"label":"Hydraulic Tank","values":["20.3 l"]}]},{"name":"Safety Equipment","rows":[{"label":"Cab","values":["YES"]},{"label":"Open Cab","values":["NO"]},{"label":"Front Sliding Window","values":["YES"]}]}]}
