Trenchers TR Series

Models

TR48, TR60

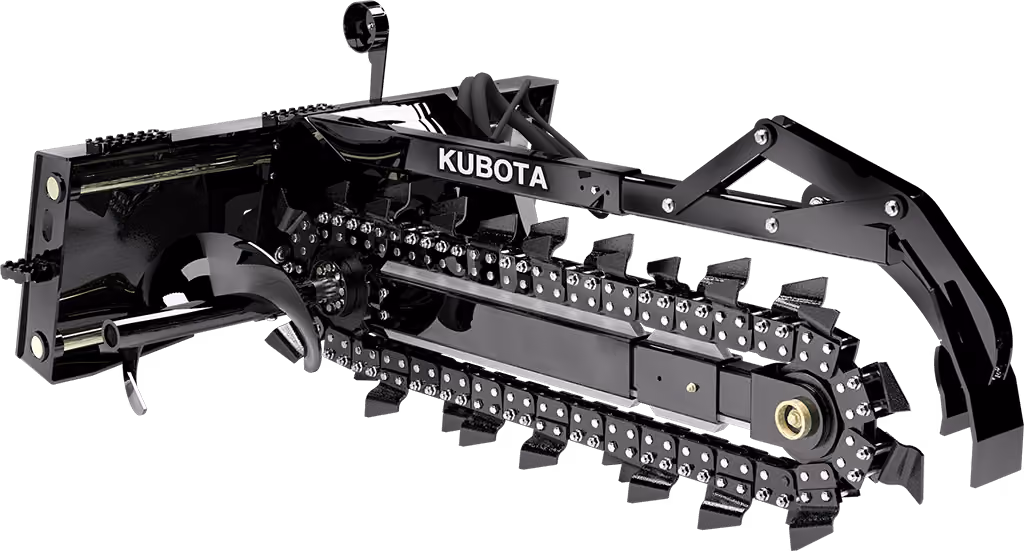

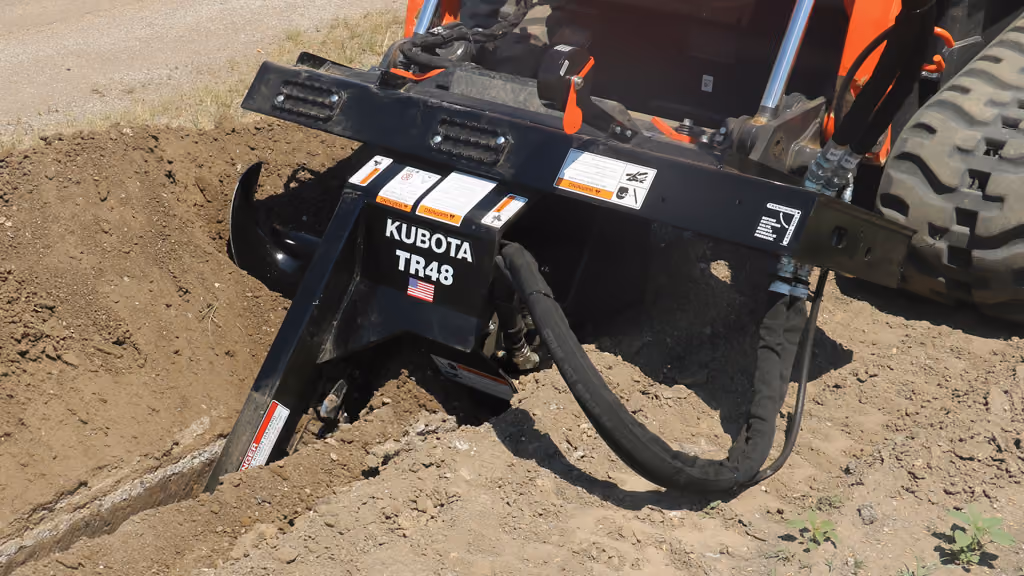

The TR48 & TR60 Trencher is available in two sizes with two motor options. This contractor-grade Trencher will make quick work of trenching runs for pipe, cable, electrical, or irrigation. It comes in two common sizes, 4' and 5' trenching depths, and features 4 different chain styles for each model. Chains are either 2 or 4 pitch for clay, sandy, or lightly compacted soils or alligator or scorpion chains for highly compacted or rocky soils. Only available through Kubota Dealers.

Related Categories

Construction

Attachments

Documents

Download Brochure

No items found.

Features

Adjustable grader blades

Dual height grader blades allow the grader to be adjusted to desired amount of cultivation, leveling, & grading.

Bucket carrier on top

After loading the SG25 onto a trailer, a bucket can be mounted on top using the storage lugs, to save space.

Replaceable skid shoes

Full length, heavy-duty skid shoes are reversible and replaceable.

Key Specifications

{"version":1,"models":[{"code":"TR48"},{"code":"TR60"}],"sections":[{"name":"Dimensions","rows":[{"label":"Weight w/2 Pitch Cup Chain & Hydraulic Side Shift","values":["560.6 kg","589.7 kg"]},{"label":"Overall Length","values":["2.3 m","2.6 m"]},{"label":"Standard Boom Length","values":["1.66 m","1.97 m"]},{"label":"Digging Depth at 60°","values":["1.22 m","1.52 m"]},{"label":"Overall Width","values":["1.63 m","1.63 m"]},{"label":"Trenching Width Available (small)","values":["15.2 cm","15.2 cm"]},{"label":"Trenching Width Available (medium)","values":["20.3 cm","20.3 cm"]},{"label":"Trenching Width Available (large)","values":["25.4 cm","25.4 cm"]},{"label":"Side Shift Travel","values":["55.9 cm","55.9 cm"]},{"label":"Auger diameter","values":["39.4 cm","39.4 cm"]}]},{"name":"Specifications","rows":[{"label":"Side Shift Options (From Center To Right)","values":["55.9 cm","55.9 cm"]},{"label":"Min. Hydraulic Flow","values":["57 L/min","57 L/min"]},{"label":"Max. Hydraulic Flow","values":["91 L/min","91 L/min"]},{"label":"Max. Chain Speed","values":["112 m/min","112 m/min"]},{"label":"Motor Case Drain","values":["Standard","Standard"]},{"label":"Motor","values":["Reversible","Reversible"]},{"label":"Chain Tightener","values":["Grease Cylinder","Grease Cylinder"]},{"label":"Crumber Shoe","values":["Floating","Floating"]},{"label":"Spoil Auger","values":["Removable","Removable"]},{"label":"Patented Depth Indicator","values":["Standard","Standard"]},{"label":"Roller Guide Bearings With Triple-Lip Seals","values":["Standard","Standard"]},{"label":"Self-Contained Drive Bearings","values":["Standard","Standard"]},{"label":"Standard Chain","values":["2 Pitch Cup","2 Pitch Cup"]},{"label":"Frame Material Thickness","values":["8 mm","8 mm"]},{"label":"Frame Reinforcement Bar","values":["19 mm","19 mm"]},{"label":"Trencher Chain Tensile Strength","values":["22,680 kg","22,680 kg"]}]}]}
